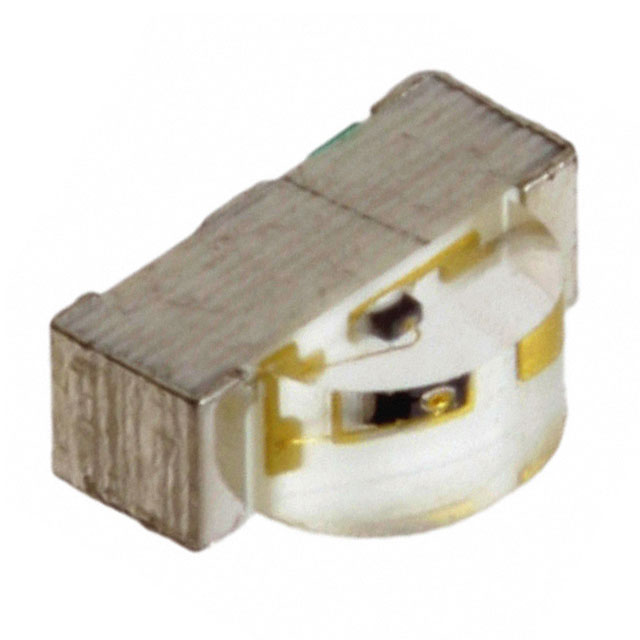

VSMB10940
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 65MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VSMB10940
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 65MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSMB10940 |
|---|---|
| Current - DC Forward (If) (Max) | 65 mA |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Side View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
VSMB10940 Series
Infrared (IR) Emitter 940nm 1.3V 65mA 1mW/sr @ 20mA 150° 2-SMD, No Lead
