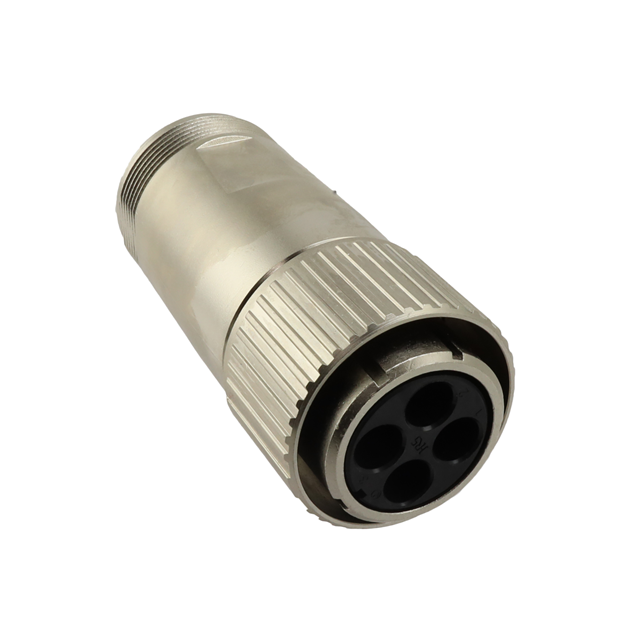

EM35WBP-4SC(81)

Obsolete

Hirose Electric USA, Inc.

CONN PLG HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLG HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	EM35WBP-4SC(81)

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	4 Power
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate Resin (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	35
Shielding	Unshielded
Type	For Female Sockets

Part	Orientation	Material Flammability Rating	Fastening Type	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Ingress Protection	Insert Material	Shell Material	Type	Features	Housing Color	Shell Size - Insert	Shielding	Connector Type	Contact Shape	Mounting Type	Contact Size	Note
Hirose Electric USA, Inc. EM35WBP-4SC(81)	Keyed	UL94 V-0	Bayonet Lock	Crimp	1	3	4	125 °C	-40 °C	Nickel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate Resin (PBT)	Aluminum Alloy	For Female Sockets	Backshell Coupling Nut	Silver	35	Unshielded	Plug Housing	Circular	Free Hanging (In-Line)	4 Power	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 43.54

General part information

4 (3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
