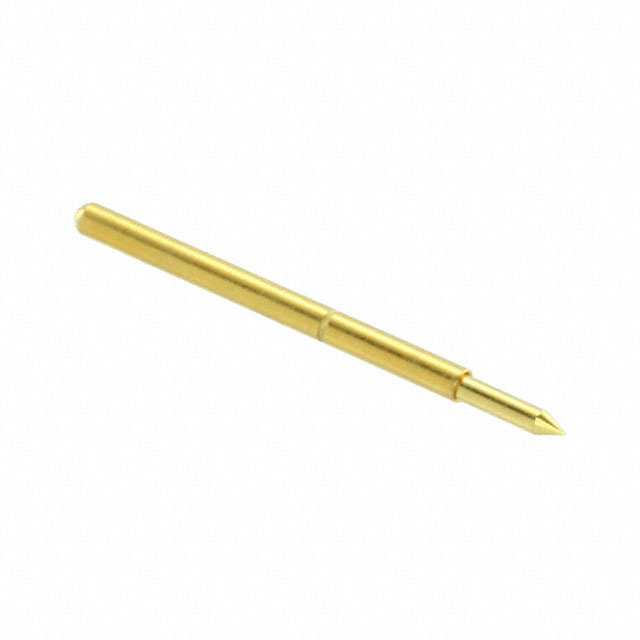

P19-0121

Active

Harwin Inc.

SPRING PROBE, 45DEG SPEAR, 3A, 16.35MM

Search across all available documentation for this part.

Active

Harwin Inc.

SPRING PROBE, 45DEG SPEAR, 3A, 16.35MM

Technical Specifications

Parameters and characteristics for this part

Specification	P19-0121

Connection Type	Sleeve S19-501
Current Rating (Amps)	3 A
Length - Tip	3.35 mm
Length - Tip	0.132 in
Material - Body	Phosphor Bronze
Material - Tip	Beryllium Copper, Gold Plated
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Quantity	1 Box
Tip Type	Spear Head

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Material - Body	Quantity	Length - Tip [x]	Length - Tip [x]	Material - Tip	Length - Overall [x]	Length - Overall [x]	Tip Type	Connection Type	Length - Tip	Length - Tip
Harwin Inc. P19-1121	-40 °C	-40 °C	85 °C	85 °C	3 A	Phosphor Bronze	1 Box	0.159 in	4.04 mm	Beryllium Copper Gold Plated	17.04 mm	0.671 in	Concave Head	Sleeve S19-501
Harwin Inc. P19-0121	-40 °C	-40 °C	85 °C	85 °C	3 A	Phosphor Bronze	1 Box			Beryllium Copper Gold Plated			Spear Head	Sleeve S19-501	3.35 mm	0.132 in
