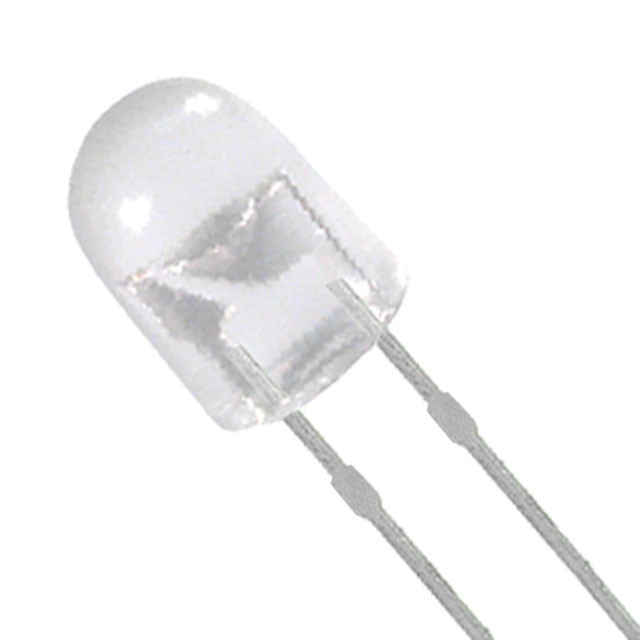

XLDGK20W
ActiveSunLED
LED GREEN CLEAR RADIAL LEAD T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLDGK20W
ActiveSunLED
LED GREEN CLEAR RADIAL LEAD T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLDGK20W |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Color | Colorless |
| Lens Size [x] | 5.2 mm |
| Lens Size [y] | 3.8 mm |
| Lens Style | Oval with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 3590 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | Radial Lead |
| Viewing Angle | 30 °, 70 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2000 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.14 | |||
| 25000 | $ 0.13 | |||
Description
General part information
XLDGK20 Series
Green 525nm LED Indication - Discrete 3.3V Radial
