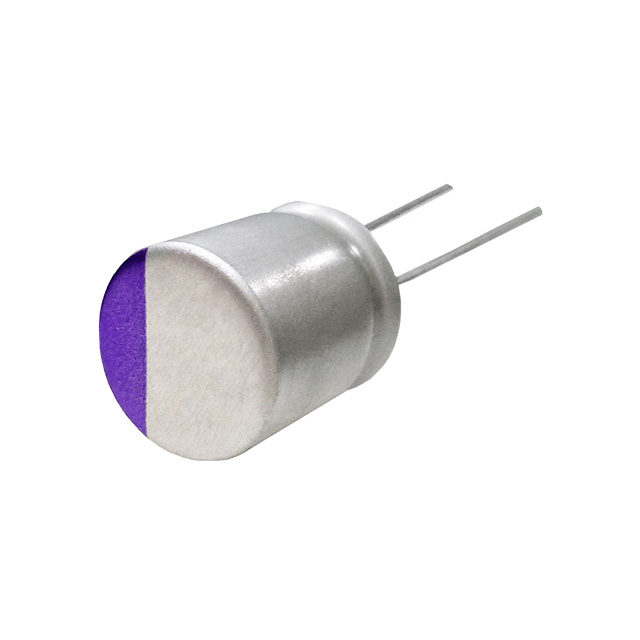

16SEPC220MD+S

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 220UF 20% 16V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16SEPC220MD+S

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 220UF 20% 16V TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16SEPC220MD+S

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	13 mOhms
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	4.15 A
Ripple Current @ Low Frequency	207.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

16SEPC Series

Part	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lifetime @ Temp.	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Mounting Type	Ripple Current @ High Frequency	Capacitance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 16SEPC150MD+S	16 V	7 mm	0.276 "	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole	3.22 A	150 µF	General Purpose	0.315 "	8 mm	161 mA	Polymer	22 mOhms
Panasonic Industrial Automation Sales 16SEPC150MD	16 V	7 mm	0.276 "	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole	3.22 A	150 µF	General Purpose	0.315 "	8 mm	161 mA	Polymer	22 mOhms
Panasonic Industrial Automation Sales 16SEPC100M+TSS	16 V	6 mm	0.236 in	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	2.5 mm	0.098 in	Through Hole	2.49 A	100 µF	General Purpose	0.248 in	6.3 mm	124.5 mA	Polymer	24 mOhms
Panasonic Industrial Automation Sales 16SEPC220MD+S	16 V	7 mm	0.276 "	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole	4.15 A	220 µF	General Purpose	0.315 "	8 mm	207.5 mA	Polymer	13 mOhms
Panasonic Industrial Automation Sales 16SEPC220MD	16 V	7 mm	0.276 "	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole	4.15 A	220 µF	General Purpose	0.315 "	8 mm	207.5 mA	Polymer	13 mOhms
Panasonic Industrial Automation Sales 16SEPC100MW+S	16 V	9 mm	0.354 in	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	2.5 mm	0.098 in	Through Hole	4.68 A	100 µF	General Purpose	0.248 in	6.3 mm	234 mA	Polymer	10 mOhm
Panasonic Industrial Automation Sales 16SEPC270M	16 V			Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole		270 µF	General Purpose	0.315 "	8 mm	250 mA	Polymer	11 mOhm	12 mm	0.472 "
Panasonic Industrial Automation Sales 16SEPC100MW	16 V	9 mm	0.354 in	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	2.5 mm	0.098 in	Through Hole	4.68 A	100 µF	General Purpose	0.248 in	6.3 mm	234 mA	Polymer	10 mOhm
Panasonic Industrial Automation Sales 16SEPC180M+TSS	16 V	9 mm	0.354 in	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole	4.36 A	180 çF	General Purpose	0.315 "	8 mm	218 mA	Polymer	16 mOhm
Panasonic Industrial Automation Sales 16SEPC270MX+S	16 V	9 mm	0.354 in	Radial Can	5000 Hrs	20 %	105 ░C	-55 °C	3.5 mm	0.138 in	Through Hole		270 µF	General Purpose	0.315 "	8 mm	250 mA	Polymer	10 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.30
		10	$ 0.89
		50	$ 0.81
		100	$ 0.73
		500	$ 0.58
	Tape & Box (TB)	1000	$ 0.51
		2000	$ 0.48
		3000	$ 0.46
		5000	$ 0.45

Description

General part information

16SEPC Series

220 µF 16 V Aluminum - Polymer Capacitors Radial, Can 13mOhm 5000 Hrs @ 105°C
