1415166

Active

Phoenix Contact

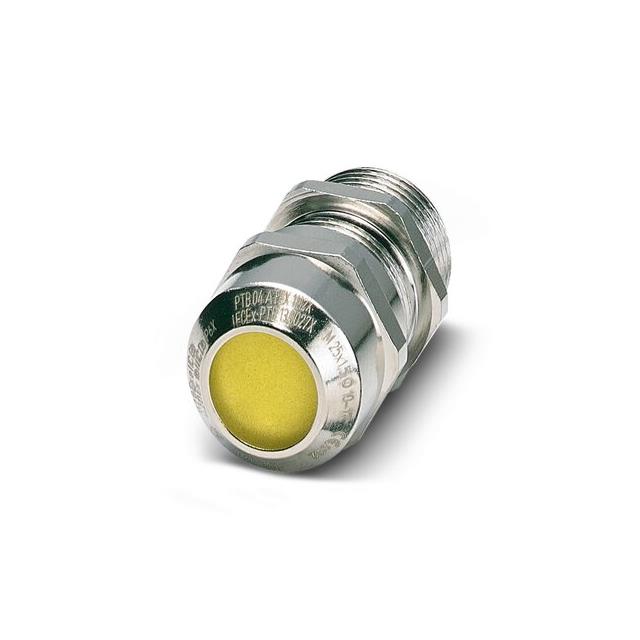

CABLE GLAND 13-21MM M32 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-21MM M32 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1415166

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M32
Type	Cable Gland

Part	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Thread Size	Color	Includes	Type	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1415166	Brass Nickel Plated	0.512 in	13 mm	M32	Silver	O-Ring Seal	Cable Gland	0.591 in	15 mm	-40 °C	75 ░C	IP66/IP68	21 mm	0.827 in
Phoenix Contact 1415163	Brass Nickel Plated	0.236 in		M20	Silver	O-Ring Seal	Cable Gland	0.472 in	12 mm	-40 °C	75 ░C	IP66/IP68	13 mm	0.512 in	6 mm
Phoenix Contact 1415170	Brass Nickel Plated	1.339 in		M63	Silver	O-Ring Seal	Cable Gland	0.591 in	15 mm	-40 °C	75 ░C	IP66/IP68	48 mm	1.89 "	34 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 40.68

General part information

Cable Gland Brass, Nickel Plated M32 Silver

Technical documentation and resources
