1059444

Active

SICK, Inc.

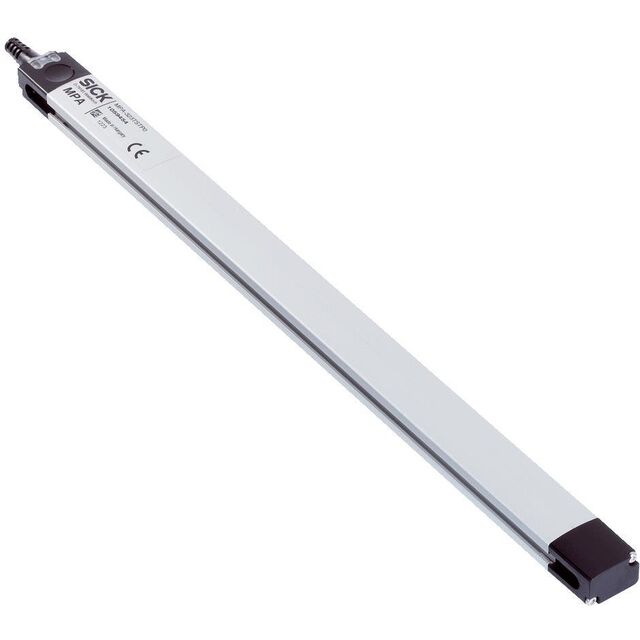

SENSOR LIN 143MM CBL W/CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1059444

Active

SICK, Inc.

SENSOR LIN 143MM CBL W/CONN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1059444

Actuator Type	T-Slot
For Measuring	Linear Position
Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Output [Max]	20 mA
Output [Min]	4
Package / Case	Module
Technology	Magnetoresistive
Termination Style	Cable with Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	15 VDC

MPA Series

Part	Actuator Type	Mounting Type	Output [Min]	Output [Max]	Package / Case	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	For Measuring	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	Linear Range [Max]
SICK, Inc. 1059460	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	16.97 in	0 in	431 mm
SICK, Inc. 1059454	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	12.72 in	0 in	323 mm
SICK, Inc. MPA-503THTP0	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	19.8 in	0 in	503 mm
SICK, Inc. 1059476	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	35.39 in	0 in	899 mm
SICK, Inc. 1059475	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	33.98 in	0 in	863 mm
SICK, Inc. 1059465	T-Slot	Chassis Mount	4	20 mA	Module	Cable	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	19.8 in	0 in	503 mm
SICK, Inc. 1059444	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC
SICK, Inc. 1059461	T-Slot	Chassis Mount	4	20 mA	Module	Cable	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	16.97 in	0 in	431 mm
SICK, Inc. 1059457	T-Slot	Chassis Mount	4	20 mA	Module	Cable	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	14.13 in	0 in	359 mm
SICK, Inc. 1059472	T-Slot	Chassis Mount	4	20 mA	Module	Cable with Connector	70 °C	-20 °C	Linear Position	Magnetoresistive	15 VDC	30 VDC	0 mm	29.72 in	0 in	755 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 440.08

Description

General part information

MPA Series

Magnetoresistive Sensor Linear Position T-Slot Cable with Connector
