AB-FA02430-19712-8A1
ActiveAmerican Bright Optoelectronics Corporation

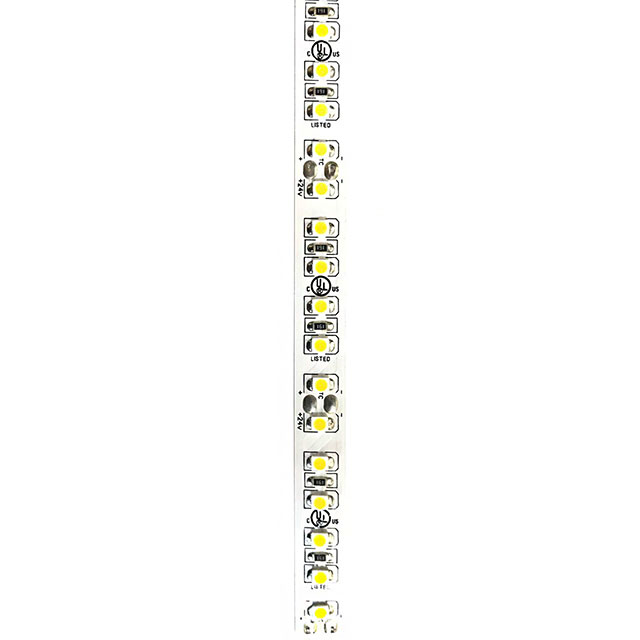

LED MOD AB-FA WH LNR STRP 3000K
Deep-Dive with AI
Search across all available documentation for this part.
AB-FA02430-19712-8A1
ActiveAmerican Bright Optoelectronics Corporation
LED MOD AB-FA WH LNR STRP 3000K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FA02430-19712-8A1 |
|---|---|
| Color | White, Warm |
| Configuration | Linear Light Strip, Flexible |
| CRI (Color Rendering Index) | 80 |
| Current - Test | 330 mA |
| Features | IP20 |
| Height [z] | 1.6 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 96 lm/W |
| Luminous Flux @ Current/Temperature | 760 lm |
| Size / Dimension [x] | 5000 mm |
| Size / Dimension [y] | 10 mm |
| Type | LED Module |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 48.31 | |
| 10 | $ 39.85 | |||
| 100 | $ 34.97 | |||
Description
General part information
AB-FA02430 Series
LED Lighting COBs Engines Modules LED Module AB-FA White, Warm Linear Light Strip, Flexible
Documents
Technical documentation and resources
No documents available
