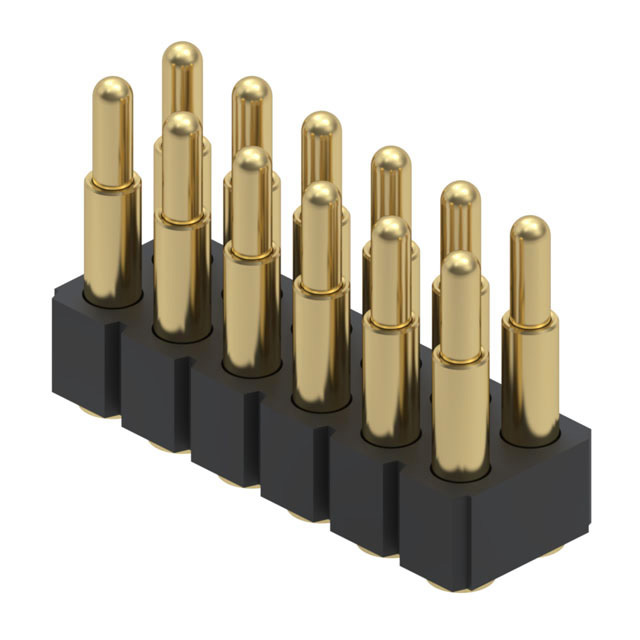

839-22-012-30-001101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 12POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 12POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Material	Number of Rows	Contact Finish	Connector Type	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Mounting Type	Pitch [x]	Pitch [x]
Mill-Max Manufacturing Corp. 839-22-012-30-001101	Copper Alloy	2	Gold	Piston	12	10 Áin	0.25 Ám	0.1 in	2.54 mm	Surface Mount	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 839-22-014-30-001101	Copper Alloy	2	Gold	Piston	14	10 Áin	0.25 Ám	0.1 in	2.54 mm	Surface Mount	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 839-22-072-30-001101	Copper Alloy	2	Gold	Piston		10 Áin	0.25 Ám	0.1 in	2.54 mm	Surface Mount	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 839-22-020-30-001101	Copper Alloy	2	Gold	Piston		10 Áin	0.25 Ám	0.1 in	2.54 mm	Surface Mount	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Spring Piston Connector Surface Mount

Technical documentation and resources

No documents available
