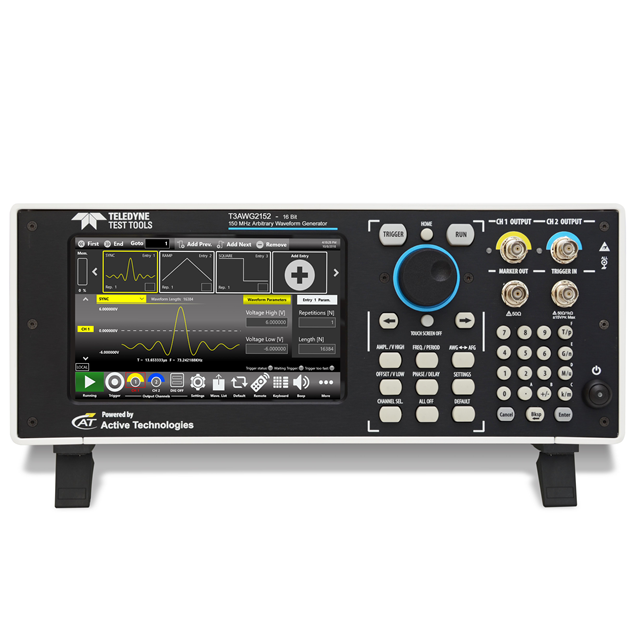

T3AWG2152-D
ActiveTeledyne LeCroy
FUNCTION/ARBITRARY WAVEFORM GENE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T3AWG2152-D
ActiveTeledyne LeCroy
FUNCTION/ARBITRARY WAVEFORM GENE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T3AWG2152-D |
|---|---|
| Display Type | TFT - Color LCD |
| Frequency - Max [Max] | 150 MHz |
| Function | Sweep, Arbitrary |
| Number of Channels [custom] | 10 |
| Signal Types | Sine, Square, Ramp, Pulse, Noise |
| Supply Voltage [Max] | 240 V |
| Supply Voltage [Min] | 100 V |
| Type | Function Generator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16970.11 | |
Description
General part information
T3AWG2152 Series
150 MHz Arbitrary, Sweep Function Generator 10 Channel Sine, Square, Pulse, Ramp, Noise Display Type TFT - Color LCD
