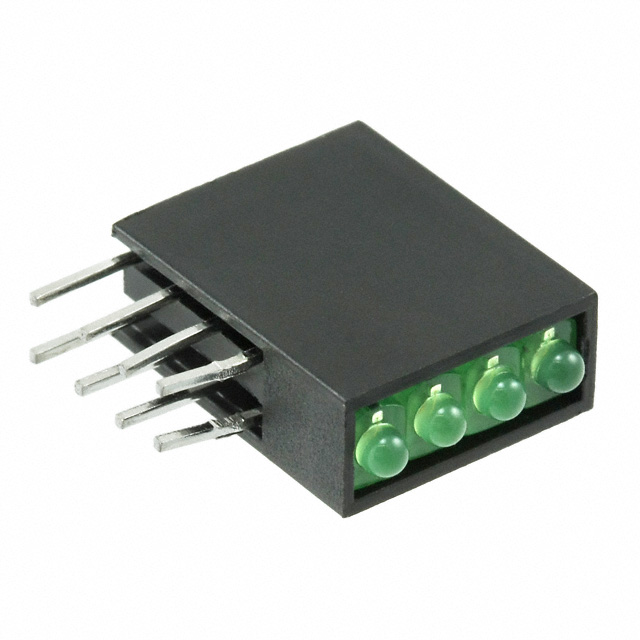

H485CGDL

Active

Bivar Inc.

LED CBI 1.8MM QUAD GRN VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H485CGDL

Active

Bivar Inc.

LED CBI 1.8MM QUAD GRN VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H485CGDL

Color	Green (x 4)
Configuration	4 High
Lens Size [diameter]	1.8 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	2 mcd
Mounting Type	Through Hole
Viewing Angle	50 °
Voltage Rating	2.1 V
Wavelength - Peak	568 nm

H485 Series

Part	Voltage Rating	Configuration	Color	Viewing Angle	Wavelength - Peak	Current	Lens Type	Millicandela Rating	Lens Size [diameter]	Lens Style	Current [custom]	Current [custom]	Current	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]
Bivar Inc. H485CHD-RP	2 V	4 High	Red (x 4)	70 °	635 nm	150 mA	Diffused	5 mcd	1.8 mm	Round with Domed Top
Bivar Inc. H485CHHGGDL	2 V 2.1 V	4 High	Green (x 2) Red (x 2)	50 °	568 nm 625 nm		Diffused	2 mcd 2 mcd	1.8 mm	Round with Domed Top	2 mA	2 mA
Bivar Inc. H485CHDL	2 V	4 High	Red (x 4)	50 °		2 mA	Diffused	2 mcd	1.8 mm	Round with Domed Top
Bivar Inc. H485CYGGGD	2 V 2.1 V	4 High	Green (x 3) Yellow (x 1)	50 °	568 nm 590 nm		Diffused	10 mcd 20 mcd	1.8 mm	Round with Domed Top			20mA Green 20mA Yellow
Bivar Inc. H485CGDL	2.1 V	4 High	Green (x 4)	50 °	568 nm		Diffused	2 mcd	1.8 mm	Round with Domed Top				Through Hole
Bivar Inc. H485CHYGAD	2 V 2 V 2 V 2.1 V	4 High	Amber (x 1) Green (x 1) Red (x 1) Yellow (x 1)	50 °	568 nm 590 nm 605 nm 625 nm		Diffused	10 mcd 20 mcd	1.8 mm	Round with Domed Top			20mA Amber 20mA Green 20mA Red 20mA Yellow
Bivar Inc. H485CHGGGDL	2 V 2.1 V	4 High	Green Red	50 °	568 nm 625 nm		Diffused	2 mcd 2 mcd	1.8 mm	Round with Domed Top	2 mA	2 mA
Bivar Inc. H485CGD-RP		4 High	Green (x 4)	70 °	565 nm	150 mA	Diffused	5 mcd	1.8 mm	Round with Domed Top
Bivar Inc. H485CHHGGD	2 V 2.1 V	4 High	Green (x 2) Red (x 2)	50 °	568 nm 625 nm	20 mA 20 mA	Diffused		1.8 mm	Round with Domed Top					20 mcd	20 mcd
Bivar Inc. H485CRRRGD-RP	2.2 V 2.3 V	4 High	Green (x 1) Red (x 3)	70 °		150 mA 150 mA	Diffused		1.8 mm	Round with Domed Top					1 mcd	5 mcd	565 nm 655 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.78
		10	$ 1.19
		100	$ 0.92
		1000	$ 0.71
		5000	$ 0.66
		10000	$ 0.65
Newark	Each	100	$ 1.09
		500	$ 1.01
		1000	$ 0.90
		2500	$ 0.73
		5000	$ 0.71

Description

General part information

H485 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 High Green (x 4) Diffused 2.1V Round with Domed Top 1.80mm Dia Through Hole
