845-058-524-412
ActiveEDAC Inc.

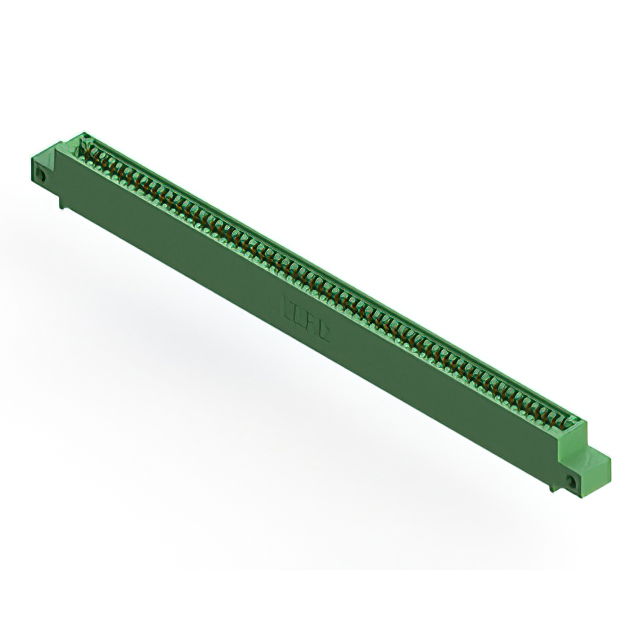

CONN EDGE SINGLE FML 58POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-058-524-412
ActiveEDAC Inc.
CONN EDGE SINGLE FML 58POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-058-524-412 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-058 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Contact Type | Material - Insulation | Termination Rows | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Card Type | Number of Positions/Bay/Row [custom] | Number of Rows | Number of Positions | Termination | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions/Bay/Row | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Single Edge | 58 | 1 | 58 | Wire Wrap | Female | 125 °C | -40 °C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Single Edge | 58 | 1 | 58 | Solder | Female | 125 °C | -40 °C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Dual Edge | 2 | 58 | Solder | Female | 125 °C | -40 °C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 29 | |||||
EDAC Inc. | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Single Edge | 58 | 1 | 58 | Solder | Female | 125 °C | -40 °C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Dual Edge | 2 | 58 | Solder | Female | 125 °C | -40 °C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 29 | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Single Edge | 58 | 1 | 58 | Solder | Female | 125 °C | -40 °C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Dual Edge | 2 | 58 | Solder Eyelet(s) | Female | 125 °C | -40 °C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 29 | |||
EDAC Inc. | Side Mount Opening Unthreaded | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Dual Edge | 2 | 58 | Solder | Female | 125 °C | -40 °C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 29 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Single Edge | 58 | 1 | 58 | Wire Wrap | Female | 125 °C | -40 °C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Through Hole | Cantilever | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | Gold | Non Specified - Dual Edge | 2 | 58 | Solder | Female | 125 °C | -40 °C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-058 Series
58 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
