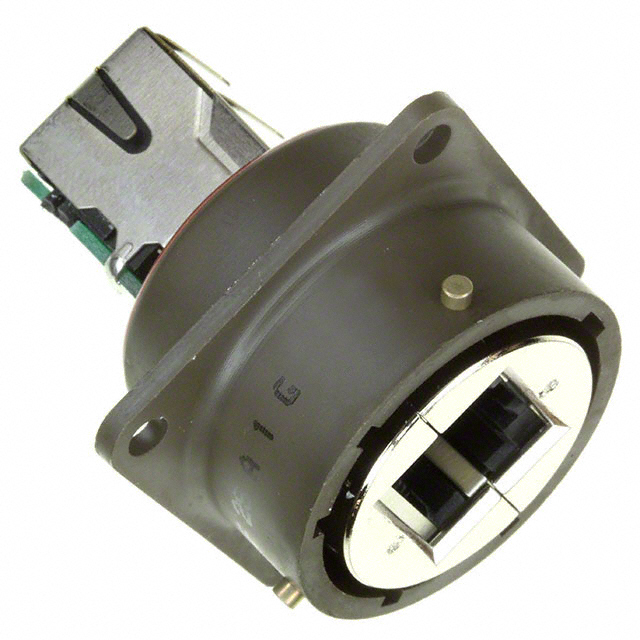

RJF2SA1G

Active

Amphenol Socapex

CONN MOD ADAPTER 8P8C TO PCB

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD ADAPTER 8P8C TO PCB

Technical Specifications

Parameters and characteristics for this part

Specification	RJF2SA1G

Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	PCB
Features	Circular Bayonet Coupling
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Square Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Olive Drab Cadmium Plated, Metal
Shielding	Unshielded
Type	Adapter

Part	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Ingress Protection	Shell Material, Finish	Shielding	Mounting Type	Convert From (Adapter End)	Features	Ratings	Type	Orientation	Number of Ports	Tab Direction	Connector Type	Number of Positions/Contacts	Termination	Number of Rows	LED Color
Amphenol Socapex RJF2SA1G	85 °C	-40 °C	PCB	IP67 - Dust Tight Waterproof	Metal Olive Drab Cadmium Plated	Unshielded	Panel Mount Square Flange	Jack 8p8c (RJ45)	Circular Bayonet Coupling	Cat5e	Adapter
Amphenol Socapex RJF2SA5B	85 °C	-40 °C		IP67 - Dust Tight Waterproof		Unshielded	Panel Mount Square Flange		Circular Bayonet Coupling	Cat5e		Straight	1	User Selectable	Jack	8p8c (RJ45 Ethernet)	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF2SA1GSCC	85 °C	-40 °C	PCB					Jack 8p8c (RJ45)
Amphenol Socapex RJF2SA1N	85 °C	-40 °C	PCB	IP67 - Dust Tight Waterproof	Metal Nickel Plated	Unshielded	Panel Mount Square Flange	Jack 8p8c (RJ45)	Circular Bayonet Coupling	Cat5e	Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Adapter Connector Jack, 8p8c (RJ45) To PCB Cat5e Unshielded
