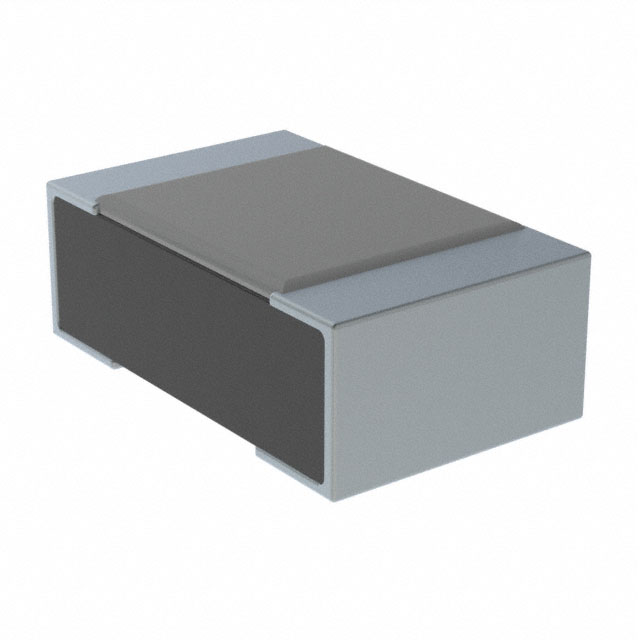

UR73V2ATTD82L0F

Active

KOA Speer Electronics, Inc.

RES 82M OHM 1% 1/2W 0805

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 82M OHM 1% 1/2W 0805

Technical Specifications

Parameters and characteristics for this part

Specification	UR73V2ATTD82L0F

Composition	Thick Film
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Ratings	AEC-Q200
Resistance	82 mOhms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

Part	Supplier Device Package	Package / Case	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Number of Terminations	Features	Composition	Resistance	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
KOA Speer Electronics, Inc. UR73V2ATTD82L0F	0805	0805	0.5 W	0.5 W	2 mm	0.079 in	0.049 in	1.25 mm	AEC-Q200	0.7 mm	0.028 in	75 ppm/°C	2	Automotive AEC-Q200 Current Sense	Thick Film	82 mOhms	1 %	155 °C	-55 °C
KOA Speer Electronics, Inc. UR73V2ATTD68L0F	0805	0805	0.5 W	0.5 W	2 mm	0.079 in	0.049 in	1.25 mm	AEC-Q200	0.7 mm	0.028 in	75 ppm/°C	2	Automotive AEC-Q200 Current Sense	Thick Film	68 mOhms	1 %	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

82 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense Thick Film
