Technical Specifications
Parameters and characteristics for this part

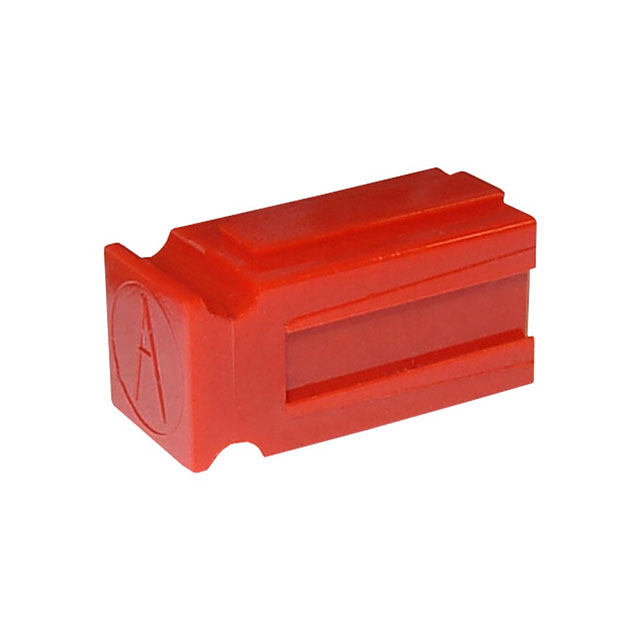

| Specification | 1399G6-BK |
|---|---|
| Accessory Type | Spacer, Short |
| Color | Red |
| For Use With/Related Products | 45, 30, 15 |
PP15/45 Series
Heavy Duty Power Connectors 45A1X3VERTMT SHTTAILBLKHSG
| Part | For Use With/Related Products | Specifications [custom] | Accessory Type | Color | Stacking Direction | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Current Rating (Amps) | Number of Positions | Fastening Type | Mounting Type | Contact Type | Note | Material - Insulation | Material - Insulation | Features | Number of Rows | Voltage Rating | Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Anderson Power Products, Inc. | 15 30 45 | 7 8 | Cable Clamp | |||||||||||||||||||||||
Anderson Power Products, Inc. | Black Red | Side to Side | -20 C | 105 ░C | Crimp | 55 A | 2 | Spring Retention | Free Hanging (In-Line) | Non-Gendered | Contacts Not Included | Polycarbonate | PC | Stackable | 1 | 600 V | ||||||||||
Anderson Power Products, Inc. | Crimp | Non-Gendered | Stamped | 16 AWG | 20 AWG | Copper Alloy | Tin | |||||||||||||||||||
Anderson Power Products, Inc. | Blue | -20 C | 105 ░C | Crimp | 55 A | 1 | Spring Retention | Free Hanging (In-Line) | Non-Gendered | Contacts Not Included | Polycarbonate | PC | Finger Proof Stackable | 1 | 600 V | |||||||||||
Anderson Power Products, Inc. | PCB Solder | Non-Gendered | Copper Alloy | Tin | 2.54 µm | 100 µin | ||||||||||||||||||||
Anderson Power Products, Inc. | Black Red | Side to Side | Crimp | 55 A | 4 | Spring Retention | Free Hanging (In-Line) | Non-Gendered | Contacts Not Included | Stackable | 1 | |||||||||||||||
Anderson Power Products, Inc. | 15 30 45 | Short Spacer | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PP15/45 Series
Heavy Duty Power Connectors 45A1X3VERTMT SHTTAILBLKHSG
