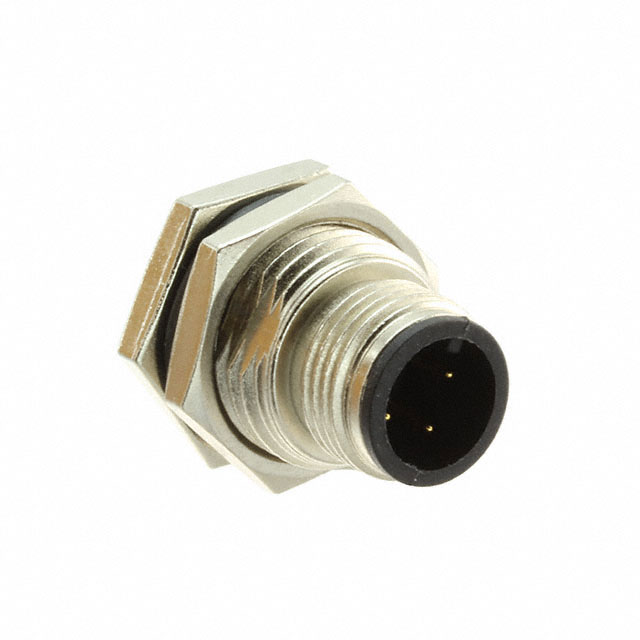

12-03PMMS-SF8001

Obsolete

Amphenol LTW

CONN PLUG MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN PLUG MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	12-03PMMS-SF8001

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-3
Shielding	Shielded

Part	Connector Type	Insert Material	Shell Finish	Color	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Orientation	Shell Size - Insert	Shielding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Shell Material
Amphenol LTW 12-03PMMS-SF8001	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Nickel	Silver	Gold	Bulkhead - Front Side Nut	4 A	A	M12-3	Shielded	Copper Alloy	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Metal	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup
