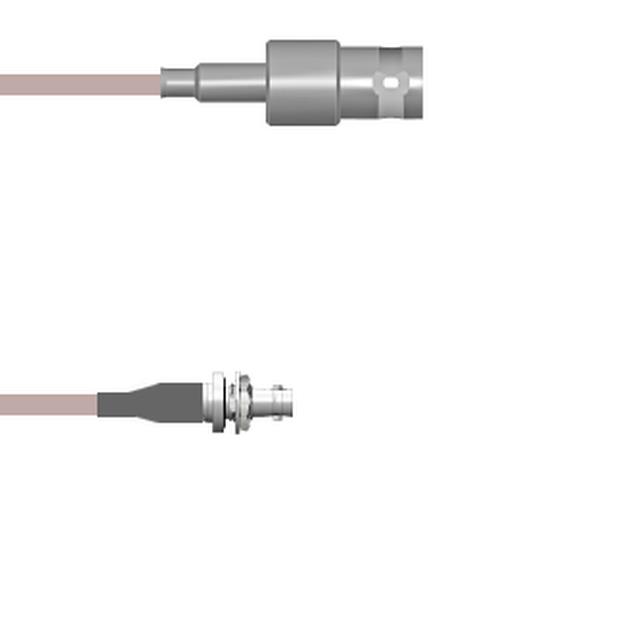

Q-0300P0005.25M

Active

Amphenol Custom Cable

COAX CBL BNC TO HD-BNC 9.8"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0300P0005.25M

Active

Amphenol Custom Cable

COAX CBL BNC TO HD-BNC 9.8"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0300P0005.25M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0300P0 Series

Part	2nd Connector Mounting Feature	1st Connector	2nd Contact Gender	1st Contact Gender	Color	Cable Type	Overall Impedance	Features	Frequency - Max [Max]	Style	1st Connector Mounting Type	Length [x]	Length [x]	2nd Connector Mounting Type	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-0300P0005.25M	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)	9.843 "	250 mm	Panel Mount
Amphenol Custom Cable Q-0300P00031.5M	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Black	RG-174	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-0300P0005009i	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	9 "		228.6 mm
Amphenol Custom Cable Q-0300P0003.25M	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Black	RG-174	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)	9.843 "	250 mm	Panel Mount
Amphenol Custom Cable Q-0300P0005036i	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	36 in		91.44 cm
Amphenol Custom Cable Q-0300P0005018i	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)		457.2 mm	Panel Mount				457.2 mm
Amphenol Custom Cable Q-0300P0005024i	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	24 "		609.6 mm
Amphenol Custom Cable Q-0300P0005108i	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	108 in	9 ft	2.7 m
Amphenol Custom Cable Q-0300P00052.5M	Bulkhead - Front Side Nut	BNC Jack	Female	Female	Copper	RG-316	50 Ohms	Shielded	4 GHz	BNC to HD-BNC	Free Hanging (In-Line)			Panel Mount	98.4 in	8.2 '	2.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.07
		25	$ 73.60
		50	$ 72.13
		100	$ 70.66
		250	$ 69.18

Description

General part information

Q-0300P0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
