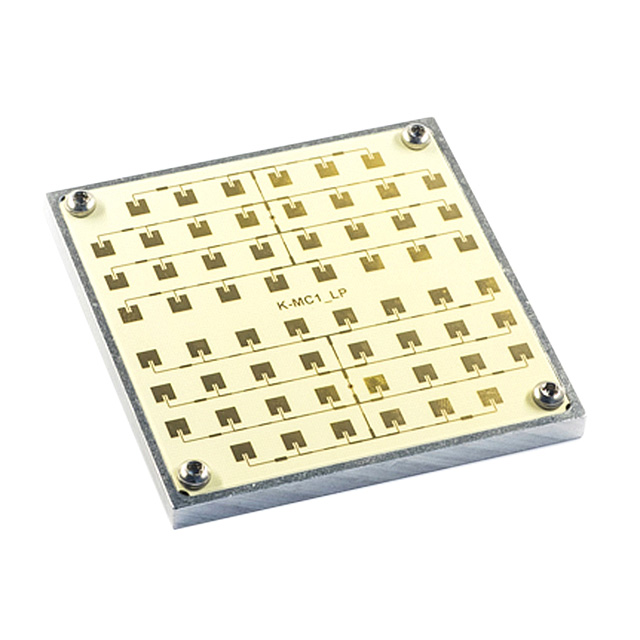

K-MC1_LP
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH CHAS
Deep-Dive with AI
Search across all available documentation for this part.
K-MC1_LP
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K-MC1_LP |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 7.5 mA |
| Current - Transmitting | 7.5 mA |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24.05 GHz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power - Output | 18 dBm |
| RF Family/Standard | Radar |
| Sensitivity | -140 dBm |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 215.70 | |
| 5 | $ 201.90 | |||
| 10 | $ 196.74 | |||
| 30 | $ 189.43 | |||
| 50 | $ 186.36 | |||
Description
General part information
K-MC1 Series
Radar Transceiver Module 24.05GHz ~ 24.25GHz Integrated, Ceramic Patch Chassis Mount
Documents
Technical documentation and resources
No documents available
