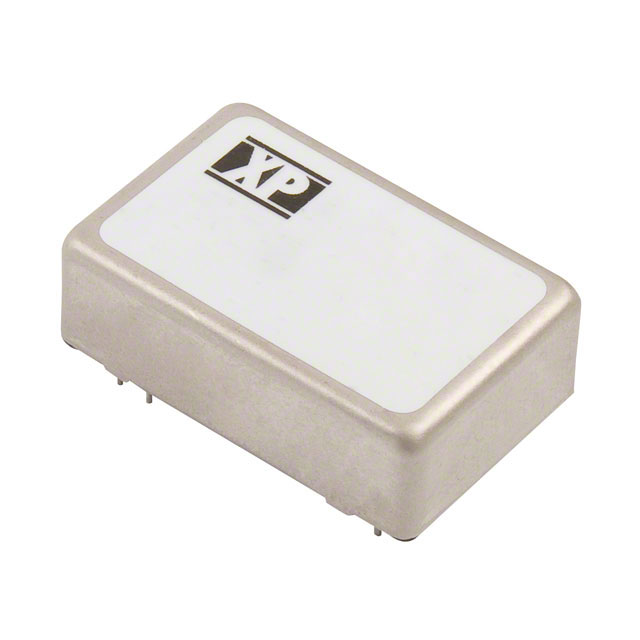

JTF1248D12

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 12 W, 2 OUTPUT, 12 V, 500 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

JTF1248D12

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 12 W, 2 OUTPUT, 12 V, 500 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JTF1248D12

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max)	500 mA
Current - Output (Max)	500 mA
Efficiency	90 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

JTF1248 Series

Part	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 2	Mounting Type	Package / Case	Package / Case	Voltage - Isolation	Control Features	Number of Outputs	Voltage - Input (Min) [Min]	Type	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
XP POWER JTF1248D12	ITE (Commercial)	75 V	12 W	-12 V	Through Hole	9 PC Pad	24-DIP Module	1.6 kV	Active High Enable	2	18 V	Isolated Module	62368-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	90 %	500 mA	500 mA	OCP OVP Remote On/Off SCP	12 V	-40 °C	105 ░C
XP POWER JTF1248S05	ITE (Commercial)	75 V	12 W		Through Hole		24-DIP Module 8 Leads	1.6 kV	Active High Enable	1	18 V	Isolated Module	62368-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	89 %			OCP OVP Remote On/Off SCP	5.1 V	-40 °C	105 ░C	2.4 A
XP POWER JTF1248S15	ITE (Commercial)	75 V	12 W		Through Hole		24-DIP Module 8 Leads	1.6 kV	Active High Enable	1	18 V	Isolated Module	62368-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	90 %			OCP OVP Remote On/Off SCP	15 V	-40 °C	105 ░C	800 mA
XP POWER JTF1248D05	ITE (Commercial)	75 V	12 W	-5 V	Through Hole	9 PC Pad	24-DIP Module	1.6 kV	Active High Enable	2	18 V	Isolated Module	62368-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	87 %			OCP OVP Remote On/Off SCP	5 V	-40 °C	105 ░C		1.2 A	1.2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 34.78
		5	$ 33.74
		10	$ 32.69
		25	$ 31.30
		100	$ 29.22
Newark	Each	10	$ 32.05
		25	$ 30.69
		100	$ 28.64

Description

General part information

JTF1248 Series

12 Watt DC/DC converter in an industry standard DIP-24 metal case with an extra wide 4:1 input range and continuous short circuit protection. This robust, high reliability, industrial grade product is suitable for a wide range of applications.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Certificate of Conformity EN

Datasheet
