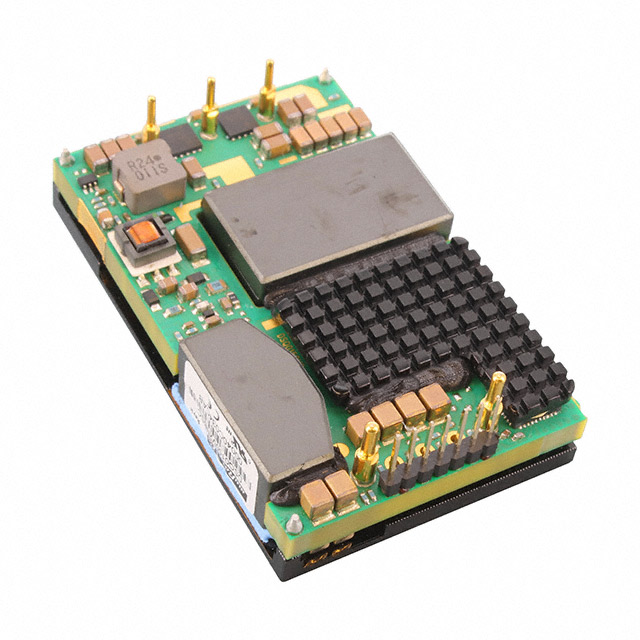

DSQ0150V2NBSC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 2:1, 600 W, 1 OUTPUT, 12 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 2:1, 600 W, 1 OUTPUT, 12 V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Power (Watts)	Type	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case	Control Features	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Supplier Device Package
Murata Power Solutions Inc. DSQ0150V2NBRSC	36 V	96 %	2.3 in	13.2 mm	36.8 mm	1.45 in	0.52 "	58.4 mm	75 V	600 W	Isolated Module Digital	OCP OTP OVP Remote On/Off SCP	ITE (Commercial)	85 °C	-40 °C	12 V	Quarter Brick	Active Low Enable	Through Hole	2250 VDC	50 A	1	Quarter Brick
Murata Power Solutions Inc. DSQ0150V2NBSC	36 V	96 %	2.3 in	13.2 mm	36.8 mm	1.45 in	0.52 "	58.4 mm	75 V	600 W	Isolated Module Digital	OCP OTP OVP Remote On/Off SCP	ITE (Commercial)	85 °C	-40 °C	12 V	Quarter Brick	Active Low Enable	Through Hole	2250 VDC	50 A	1	Quarter Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module, Digital DC DC Converter 1 Output 12V 50A 36V - 75V Input
