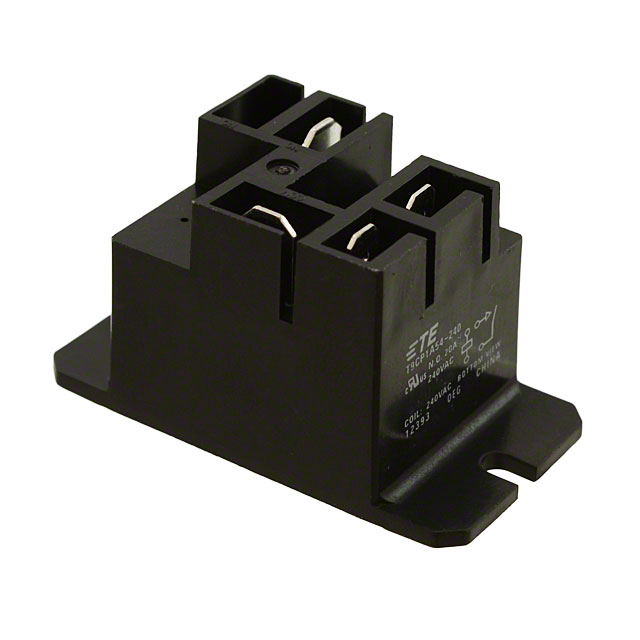

T9CP1A54-240
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 240V
Deep-Dive with AI
Search across all available documentation for this part.
T9CP1A54-240
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T9CP1A54-240 |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 20.9 mA |
| Coil Insulation | Class F |
| Coil Resistance | 12 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 240 VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 8310 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.21 | |
| 10 | $ 8.64 | |||
| 25 | $ 7.68 | |||
| 50 | $ 7.29 | |||
| 100 | $ 6.91 | |||
| 250 | $ 6.14 | |||
| 500 | $ 5.76 | |||
| 1000 | $ 5.37 | |||
Description
General part information
T9CP1 Series
General Purpose Relay SPST-NO (1 Form A) 240VAC Coil Chassis Mount
