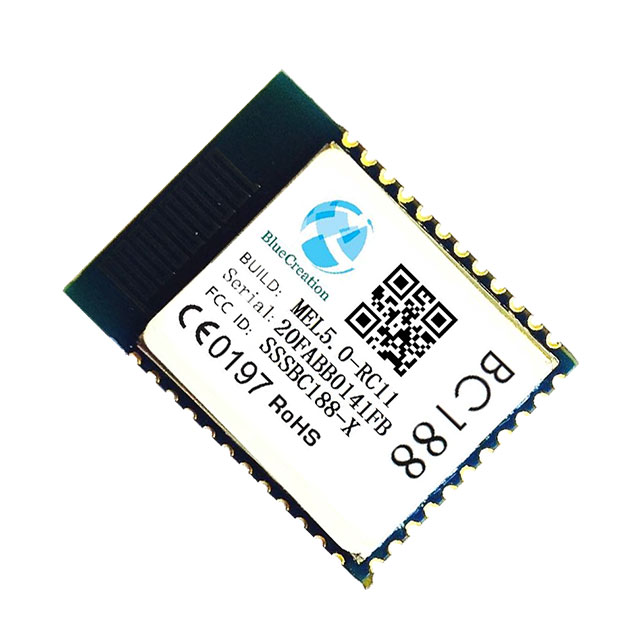

BC188
ActiveSemtech Corporation
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC188
ActiveSemtech Corporation
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC188 |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 72.2 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 62-SMD Module |
| Power - Output | 26 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -15 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Utilized IC / Part | BC188 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 16.37 | |
Description
General part information
BC188 Series
WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
