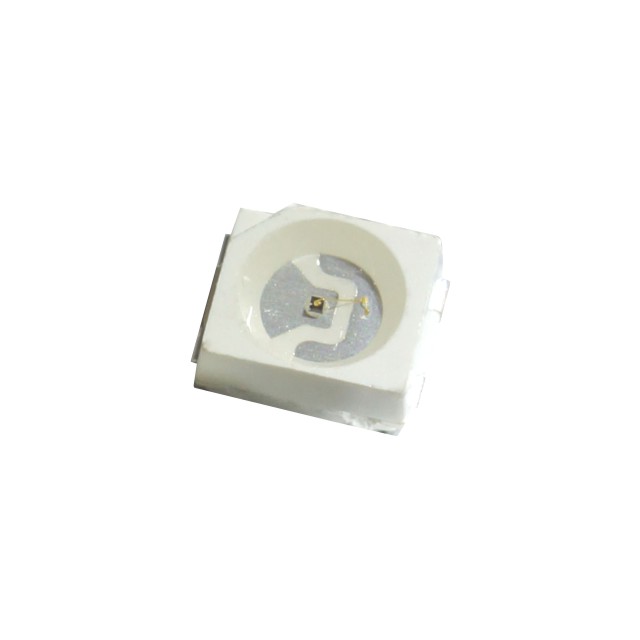

QBLP670-Y-2897

Active

QT Brightek (QTB)

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP670-Y-2897

Active

QT Brightek (QTB)

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP670-Y-2897

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	2.1 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	740 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	2-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm

QBLP670 Series

Part	Millicandela Rating	Lens Size [diameter]	Lens Color	Supplier Device Package	Color	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Transparency	Lens Style	Height (Max) [Max] [z]	Current - Test	Package / Case	Mounting Type	Viewing Angle	Configuration	Wavelength - Dominant [custom]	Type	Orientation	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]
QT Brightek (QTB) QBLP670D-IW-WW-2897	7500 mcd	2.4 mm	Colorless	2-PLCC	Warm White	2.8 mm	3.2 mm	2.8 V	3000 K	Clear	Round with Domed Top	3.8 mm	20 mA	2-PLCC	Surface Mount	30 °	Standard
QT Brightek (QTB) QBLP670D-IW-CW-2897	8000 mcd	2.4 mm	Colorless	2-PLCC	Cool White	2.8 mm	3.2 mm	2.8 V	6500 K	Clear	Round with Domed Top	3.8 mm	20 mA	2-PLCC	Surface Mount	30 °	Standard
QT Brightek (QTB) QBLP670D-IW-CW	2600 mcd	2.4 mm	Colorless	2-PLCC	Cool White	2.8 mm	3.2 mm	3.1 V		Clear	Round with Domed Top	3.8 mm	20 mA	2-PLCC	Surface Mount	30 °	Standard	9000 K
QT Brightek (QTB) QBLP670-Y	210 mcd	2.4 mm	Colorless	2-PLCC	Yellow	2.8 mm	3.2 mm	2 V	590 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-IB-2897	300 mcd	2.4 mm	Colorless	2-PLCC	Blue	2.8 mm	3.2 mm	3.1 V	470 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-YG1	28 mcd	2.4 mm	Colorless	2-PLCC	Green	2.8 mm	3.2 mm	2.1 V	570 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-Y-2897	740 mcd	2.4 mm	Colorless	2-PLCC	Yellow	2.8 mm	3.2 mm	2 V	590 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-AG1	85 mcd	2.4 mm	Colorless	2-PLCC	Green	2.8 mm	3.2 mm	2 V	569 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-IG-2897	1400 mcd	2.4 mm	Colorless	2-PLCC	Green	2.8 mm	3.2 mm	3.3 V	525 nm	Clear		2.1 mm	20 mA	2-PLCC	Surface Mount	120 °	Standard
QT Brightek (QTB) QBLP670-IR2								1.7 V						2-LCC	Surface Mount	120 °			Infrared (IR)	Top View	100 mA	0.6 mW/sr	880 nm	80 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.14
		6000	$ 0.12
		10000	$ 0.12
		50000	$ 0.11

Description

General part information

QBLP670 Series

Yellow 590nm LED Indication - Discrete 2V 2-PLCC
