QBDS560AG

Active

QT Brightek (QTB)

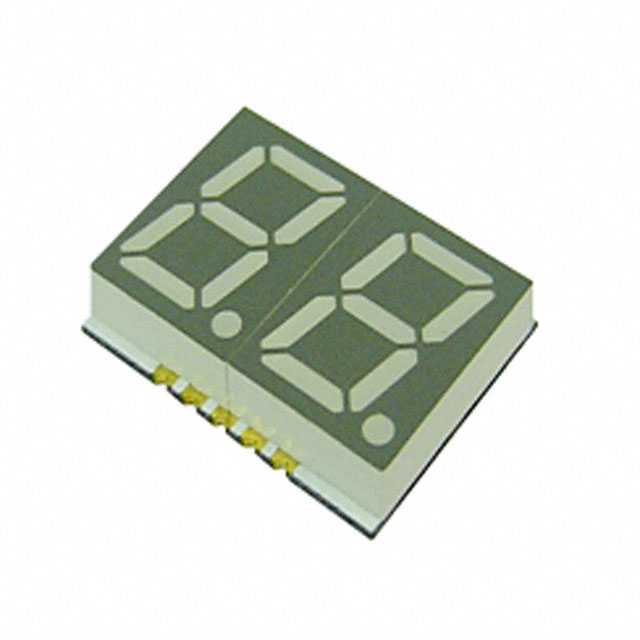

DISP 7SEG 0.56" DBL YLW-GN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBDS560AG

Active

QT Brightek (QTB)

DISP 7SEG 0.56" DBL YLW-GN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBDS560AG

Color	Yellow-Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	12 mcd
Number of Characters	2
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [z]	0.748 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	570 nm

QBDS560 Series

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Power Dissipation (Max) [Max]	Common Pin	Wavelength - Peak	Color	Millicandela Rating	Number of Characters	Size / Dimension [z]	Display Type	Digit/Alpha Size	Digit/Alpha Size	Package / Case
QT Brightek (QTB) QBDS560AG	2 V	20 mA	70 mW	Common Anode	570 nm	Yellow-Green	12 mcd	2	0.748 "	7-Segment	0.56 in	14.22 mm	10-SMD No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.25
	Digi-Reel®	1	$ 5.25
	Tape & Reel (TR)	100	$ 3.04
		500	$ 2.56
		1000	$ 2.35
		2500	$ 2.25

Description

General part information

QBDS560 Series

Display Modules - LED Character and Numeric Yellow-Green 7-Segment 2 Character Common Anode 2V 20mA 0.748" H x 0.985" W x 0.152" D (19.00mm x 25.00mm x 3.85mm) 10-SMD, No Lead
