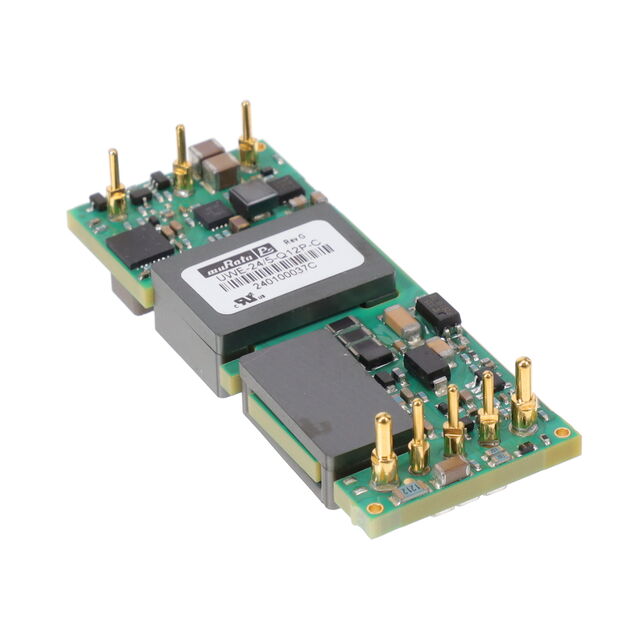

UWE-24/5-Q12P-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 120W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 120W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Features	Power (Watts)	Voltage - Output 1	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Control Features	Efficiency	Supplier Device Package
Murata Power Solutions Inc. UWE-24/3-Q12PB-C	ITE (Commercial)	9 V	Through Hole	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	72 W	24 V	1	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	1/8 Brick 8-DIP Module	36 V	3 A	Isolated Module	Active High Enable
Murata Power Solutions Inc. UWE-24/5-Q12P-C	ITE (Commercial)	9 V	Through Hole	2250 VDC		120 W	24 V	1	2.3 in	0.9 "	10.2 mm	0.4 "	22.9 mm	58.4 mm	85 °C	-40 °C	Eighth Brick	36 V	5 A	Isolated Module	Active High Enable	92 %	Eighth Brick
Murata Power Solutions Inc. UWE-24/3-Q12N-C	ITE (Commercial)	9 V	Through Hole	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	72 W	24 V	1	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	1/8 Brick 8-DIP Module	36 V	3 A	Isolated Module	Active Low Enable
Murata Power Solutions Inc. UWE-24/5-Q12N-C	ITE (Commercial)	9 V	Through Hole	2250 VDC		120 W	24 V	1	2.3 in	0.9 "	10.2 mm	0.4 "	22.9 mm	58.4 mm	85 °C	-40 °C	Eighth Brick	36 V	5 A	Isolated Module	Active Low Enable	92 %	Eighth Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 5A 9V - 36V Input
