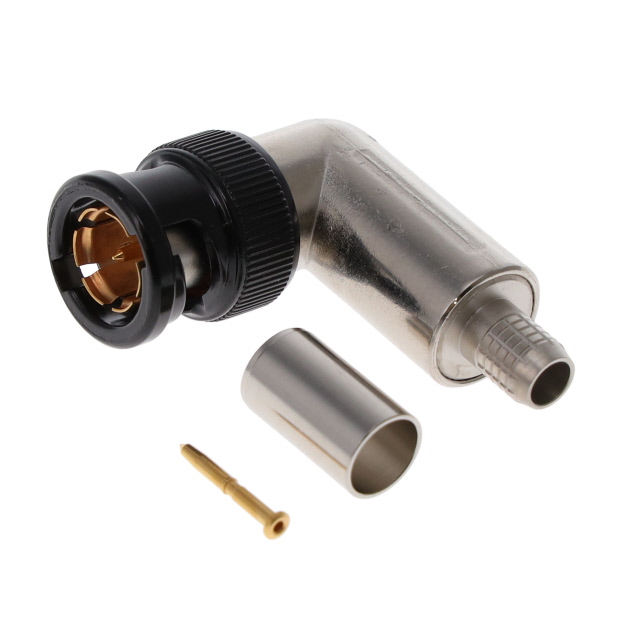

UPLR2000-D2

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	UPLR2000-D2

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 1505A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Black
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Dielectric Material	Frequency - Max [Max]	Shield Termination	Impedance	Voltage Rating	Contact Termination	Fastening Type	Center Contact Plating	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insertion Loss	Connector Style	Mounting Type	Body Finish	Mating Cycles	Body Material	Cable Group	Housing Color	Center Contact Material
Cinch Connectivity Solutions Trompeter UPLR2000-D2	Polytetrafluoroethylene (PTFE)	6000 MHz	Crimp	75 Ohms	500 V	Crimp	Bayonet Lock	Gold	1	85 °C	-40 °C	Male Pin Plug	0.2 dB	BNC	Free Hanging (In-Line) Right Angle	Nickel	500	Brass	Belden 1505A	Black	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 22.95

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
