601404CY

Active

LAPP

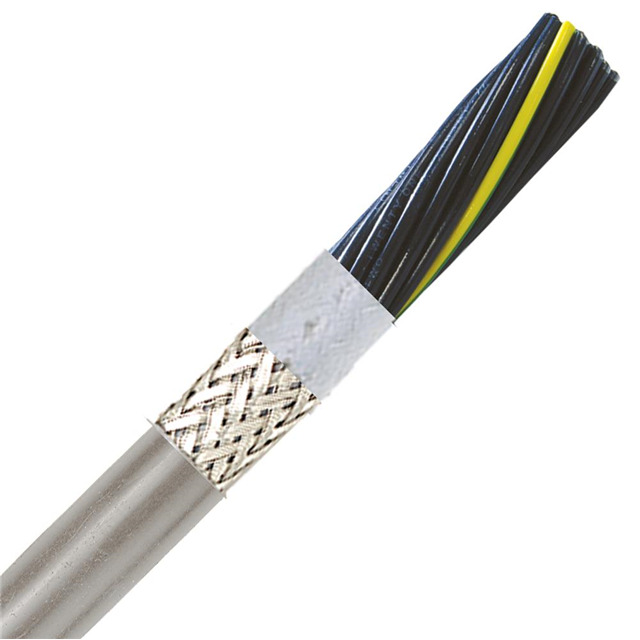

MULTICONDUCTOR CABLE, OLFLEX® 190 CY CONTROL, SHIELDED, 4 CONDUCTOR, 14 AWG, 2.5 MM², 100 FT

Search across all available documentation for this part.

Active

LAPP

MULTICONDUCTOR CABLE, OLFLEX® 190 CY CONTROL, SHIELDED, 4 CONDUCTOR, 14 AWG, 2.5 MM², 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	601404CY

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	0.0102 in
Conductor Strand [custom]	50
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.462 in
Jacket (Insulation) Diameter [diameter]	11.73 mm
Jacket (Insulation) Material	Thermoplastic Polymer
Jacket Color	Gray
Length	15.24 m, 3.05 m
Length	Enter Number of Feet in Order Quantity
Length	10 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	4
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Spool Size	2500 ft
Spool Size	762 m
Wire Gauge	13.5 AWG

Part	Shield Coverage	Jacket (Insulation) Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Shield Material	Cable Type	Conductor Insulation	Spool Size	Spool Size	Number of Conductors	Length	Length [x]	Length	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Features	Length [x]	Jacket Color
LAPP 601404CY	85 %	Thermoplastic Polymer	Copper Bare	0.0102 in	50	Braid	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)	2500 ft	762 m	4	3.05 m 15.24 m	50 ft 100 ft	Enter Number of Feet in Order Quantity	13.5 AWG	0.462 in	11.73 mm	10 ft	Oil Resistant	30.5 m	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 14 AWG Braid Enter Number of Feet in Order Quantity
