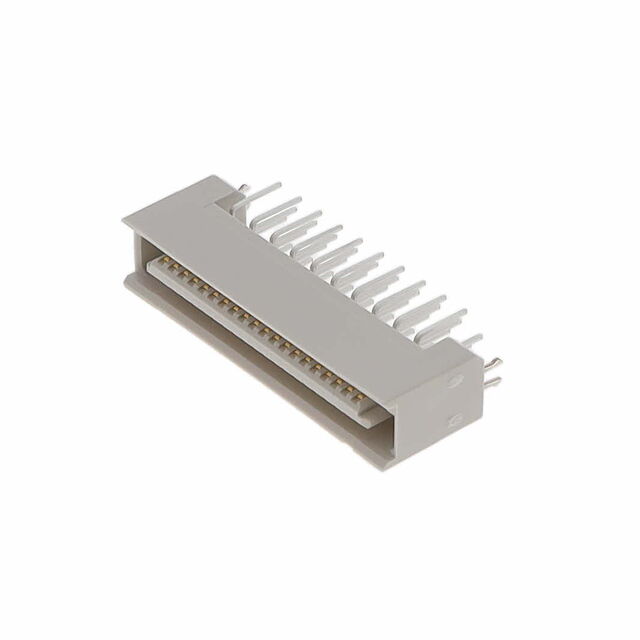

XH3A-4041-2A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 40POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XH3A-4041-2A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 40POS VERT GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XH3A-4041-2A |
|---|---|
| Contact Finish | Gold |
| Height Above Board | 0.421 in |
| Height Above Board | 10.7 mm |
| Mated Stacking Heights | 18 mm, 15 mm, 17 mm, 14 mm |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.08 | |
| 10 | $ 3.46 | |||
| 25 | $ 3.25 | |||
| 70 | $ 2.46 | |||
| 140 | $ 2.33 | |||
| 280 | $ 2.20 | |||
Description
General part information
XH3A-4041 Series
40 Position Connector Plug, Center Strip Contacts Through Hole Gold
