TLS710B0EJV50XUMA1

Active

Infineon Technologies

THE TLS710B0EJ V50 IS A LOW DROPOUT LINEAR VOLTAGE REGULATOR FOR LOAD CURRENT UP TO 100 MA. AN INPUT VOLTAGE OF UP TO 40 V IS REGULATED TO VQ,NOM = 5 V WITH ±2 % PRECISION.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN

TLS710B0EJV50XUMA1

Active

Infineon Technologies

THE TLS710B0EJ V50 IS A LOW DROPOUT LINEAR VOLTAGE REGULATOR FOR LOAD CURRENT UP TO 100 MA. AN INPUT VOLTAGE OF UP TO 40 V IS REGULATED TO VQ,NOM = 5 V WITH ±2 % PRECISION.

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLS710B0EJV50XUMA1

Control Features	Enable
Current - Output	100 mA
Current - Quiescent (Iq)	5 µA
Current - Supply (Max) [Max]	80 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	0.154 in

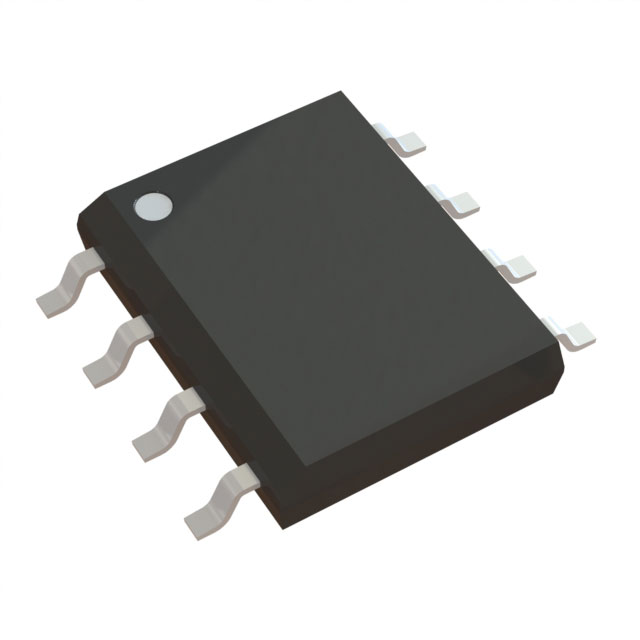

Package / Case	8-SOIC
Package / Case	3.9 mm
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	60 dB
Qualification	AEC-Q100
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.5 V

TLS710 Series

Part	Supplied Contents	Voltage - Output	Current - Output	Board Type	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Type	Utilized IC / Part	Grade	Current - Supply (Max) [Max]	Package / Case	Package / Case	Package / Case	Number of Regulators	Voltage Dropout (Max) [Max]	Qualification	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Output (Min/Fixed)	Protection Features	Output Configuration	PSRR	Current - Quiescent (Iq)	Mounting Type
Infineon Technologies TLS710B0EJV50BOARDTOBO1	Board(s)	5 V	100 mA	Fully Populated	1 - Single	4 V	40 V	Positive Fixed	TLS710B0
Infineon Technologies TLS710B0EJV50XUMA1			100 mA							Automotive	80 µA	0.154 in	8-SOIC	3.9 mm	1	0.5 V	AEC-Q100	Enable	150 °C	-40 °C	1.81 mOhm	5 V	Over Current Over Temperature Short Circuit	Positive	60 dB	5 µA	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.45
		10	$ 1.29
		25	$ 1.23
		100	$ 1.01
		250	$ 0.94
		500	$ 0.83
		1000	$ 0.66
	Digi-Reel®	1	$ 1.45
		10	$ 1.29
		25	$ 1.23
		100	$ 1.01
		250	$ 0.94
		500	$ 0.83
		1000	$ 0.66
	Tape & Reel (TR)	2500	$ 0.54
Newark	Each (Supplied on Cut Tape)	1	$ 1.09
		1	$ 1.09
		10	$ 0.76
		10	$ 0.76
		25	$ 0.74
		25	$ 0.74
		50	$ 0.72
		50	$ 0.72
		100	$ 0.70
		100	$ 0.70
		250	$ 0.67
		250	$ 0.67
		500	$ 0.65
		500	$ 0.65
		1000	$ 0.64
		1000	$ 0.64

Description

General part information

TLS710 Series

The TLS710B0, with a typical quiescent current of 40 μA, is the ideal solution for systems requiring very low operating current, such as those permanently connected to the battery. It features a very low dropout voltage of 200 mV, when the output current is less than 100 mA. In addition, the dropout region begins at input voltages of 4.0 V (extended operating range). This makes the TLS710B0 suitable to supply automotive systems with start-stop requirements. The device can be switched on and off by the Enable feature. In addition, the TLS710B0’s new fast regulation concept requires only a single, 1 μF output capacitor to maintain stable regulation. The device is designed for the harsh environment of automotive applications. Therefore standard features like output current limitation and overtemperature shutdown are implemented and protect the device against failures like output short circuit to GND, over-current and over-temperature.
