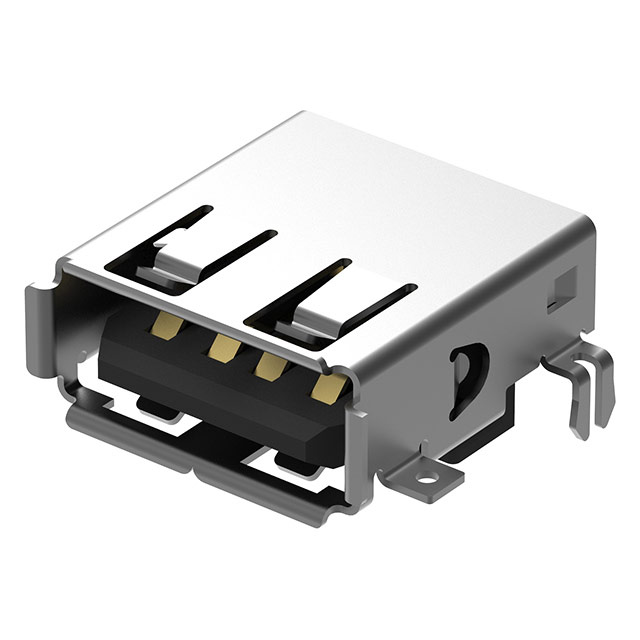

USB1020-GF-L-A

Active

GCT

USB A SKT, BOTTOM TH, R/A, GF, O

Search across all available documentation for this part.

Active

GCT

USB A SKT, BOTTOM TH, R/A, GF, O

Technical Specifications

Parameters and characteristics for this part

Specification	USB1020-GF-L-A

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Board Lock, Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal, Bottom Mount, Mid Mount
Mounting Type	Through Hole, Right Angle, Board Edge, Cutout
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Insulation Color	Mounting Type	Voltage - Rated	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish	Current Rating (Amps)	Number of Ports	Specifications	Features	Connector Type	Number of Contacts [custom]	Shell/Shielding Material	Mounting Feature	Shielding	Gender	Mating Cycles
GCT USB1020-GF-L-A	Black	Board Edge Cutout Through Hole Right Angle	30 V	Solder	85 °C	-40 °C	UL94 V-0	Gold	1.5 A	1	USB 2.0	Board Lock Solder Retention	USB-A (USB TYPE-A)	4	Brass	Bottom Mount Horizontal Mid Mount	Shielded	Receptacle	1500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10150	$ 0.46

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Board Edge, Cutout; Through Hole, Right Angle
