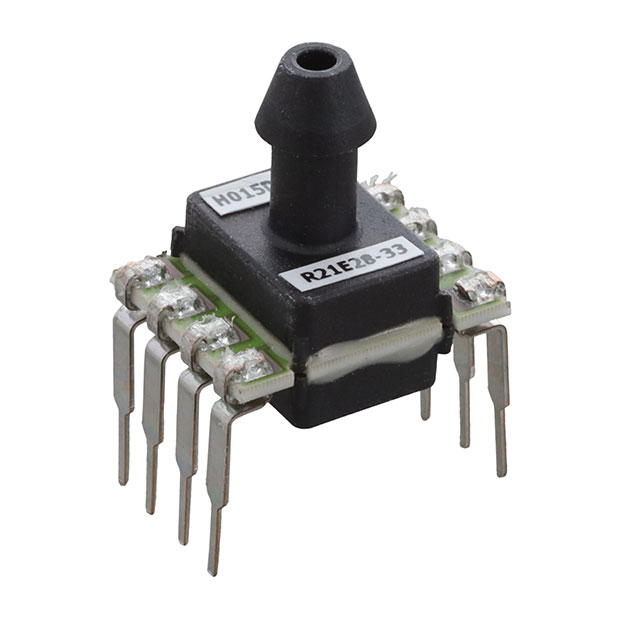

ELVH-015D-HAND-C-P2A4

Active

Amphenol All Sensors Corporation

SENSOR 14.94PSID 0.19" 14BIT

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 14.94PSID 0.19" 14BIT

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Termination Style	Package / Case	Package / Case	Port Size	Port Size	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Features	Accuracy	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Output	Package / Case	Supplier Device Package	Port Size
Amphenol All Sensors Corporation ELVH-015D-HAND-I-NAA5	207 kPa	30.02 PSI	Analog Voltage	PC Pin	0.524 " 13.3 mm	8-DIP	4.93 mm	0.19 "	Differential	85 °C	-20 C	Barbed	2.7 V	5.5 V	Through Hole	Temperature Compensated	0.25 %	-10 kPa	14.94 PSI	103 kPa	-1.45 PSI
Amphenol All Sensors Corporation ELVH-015D-HAND-C-P2A4	207 kPa	30.02 PSI	I2C	PC Pin	0.524 " 13.3 mm	8-DIP	4.93 mm	0.19 "	Differential			Barbed	2.7 V	5.5 V	Through Hole	Temperature Compensated	0.25 %	-10 kPa	14.94 PSI	103 kPa	-1.45 PSI	14 b
Amphenol All Sensors Corporation ELVH-015D-HRRD-C-NAA4	207 kPa	30.02 PSI	Analog Voltage	PC Pin	0.504 in	8-DIP Dual Ports Same Side	1.6 mm	0.06 "	Differential			Barbed	2.7 V	5.5 V	Through Hole	Temperature Compensated	0.25 %	-10 kPa	14.94 PSI	103 kPa	-1.45 PSI		12.8 mm	8-DIP	Dual Male Tube
Amphenol All Sensors Corporation ELVH-015D-HRRD-I-N2A4	207 kPa	30.02 PSI	I2C	PC Pin	0.504 in	8-DIP Dual Ports Same Side	1.6 mm	0.06 "	Differential	85 °C	-20 C	Barbed	2.7 V	5.5 V	Through Hole	Temperature Compensated	0.25 %	-10 kPa	14.94 PSI	103 kPa	-1.45 PSI	14 b	12.8 mm	8-DIP	Dual Male Tube

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) Differential Male - 0.19" (4.93mm) Tube 14 b 8-DIP (0.524", 13.30mm), Top Port
