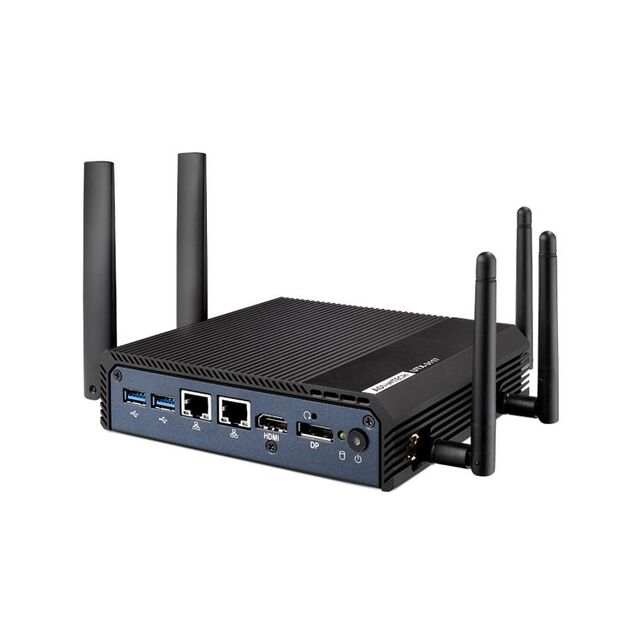

UTX-3117FS-S6A1N
ActiveAdvantech Corp
SBC 1.1GHZ 4 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
UTX-3117FS-S6A1N
ActiveAdvantech Corp
SBC 1.1GHZ 4 CORE 4GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTX-3117FS-S6A1N |
|---|---|
| Core Processor | Intel Pentium N4200 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | mPCIe, M.2 |
| Form Factor | Palm-Size |
| Number of Cores | 4 |
| Power (Watts) | 7.32 W |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 123.19 mm |
| Size / Dimension [x] | 4.85 " |
| Size / Dimension [y] | 129.03 mm |
| Size / Dimension [y] | 5.08 in |
| Speed | 1.1 GHz |
| Storage Interface | 2.5" SATA SDD, mSATA |
| USB | USB 3.0 (2) |
| Video Outputs | DP, HDMI |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 671.30 | |
Description
General part information
UTX-3117 Series
Single Board Computer 1.1GHz 4 Core 4GB/0GB RAM Intel Pentium N4200
Documents
Technical documentation and resources
No documents available
