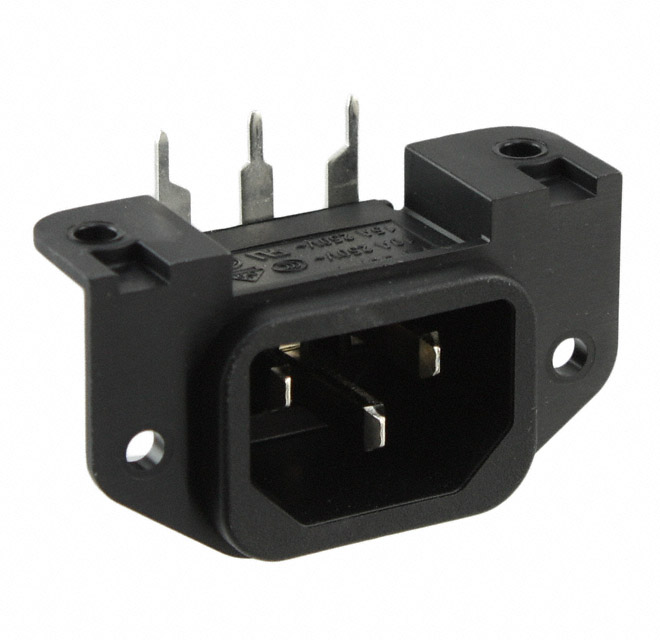

GSP1.8101.1 - GSP1.8101.1

GSP1.8101.1

Active
SCHURTER Inc.

GSP1, MOUNTING: SCREW, APPLIANCE INLET, IEC C14, FOR PCB MOUNTING, IP 40, HOLES FOR SCREWS M3, QUICK CONNECT TERMINALS 4.8 X 0.8

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+3
GSP1.8101.1 - GSP1.8101.1

GSP1.8101.1

Active
SCHURTER Inc.

GSP1, MOUNTING: SCREW, APPLIANCE INLET, IEC C14, FOR PCB MOUNTING, IP 40, HOLES FOR SCREWS M3, QUICK CONNECT TERMINALS 4.8 X 0.8

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationGSP1.8101.1
Accomodates a FuseFalse
Approval AgencyENEC, CCC, cURus
Connector StyleIEC 320-C14
Connector TypeMale Blades, Receptacle
Current Rating - Appliance Inlet10 A
Filter TypeUnfiltered - Commercial
Ingress ProtectionIP40
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]30.3 mm
Panel Cutout Dimensions [y]22.5 mm
Panel Thickness3 mm
Panel Thickness0.118 in
TerminationSolder
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.46
50$ 1.87
100$ 1.36
500$ 1.28
NewarkEach 50$ 1.94
100$ 1.84
250$ 1.73
500$ 1.62
1000$ 1.51
2500$ 1.46

Description

General part information

GSP1.8101 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
