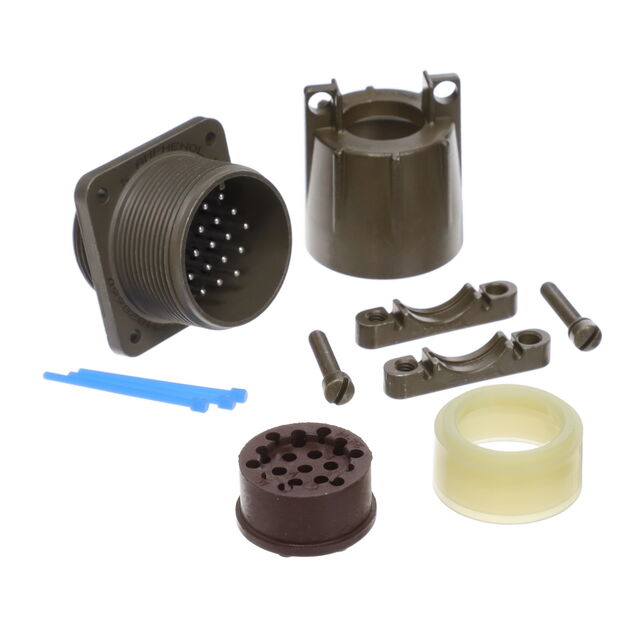

MS3100E22-14P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3100E22-14P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3100E22-14P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [diameter] | 0.74 in |
| Cable Opening [diameter] | 18.8 mm |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Cable Clamp |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 22-14 |
| Shielding | Unshielded |
| Voltage Rating | 700 VDC, 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.11 | |
| 10 | $ 14.28 | |||
| 25 | $ 13.73 | |||
| 50 | $ 13.18 | |||
| 100 | $ 12.45 | |||
| 250 | $ 11.35 | |||
| 500 | $ 10.62 | |||
| 1000 | $ 9.74 | |||
Description
General part information
MS3100E22 Series
19 Position Circular Connector Receptacle, Male Pins Solder Cup
