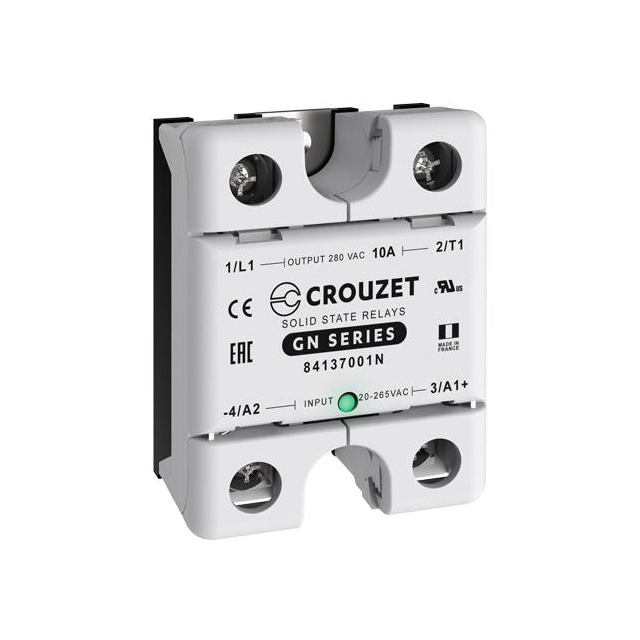

84137001N
ActiveCrouzet
SSR RELAY SPST-NO 10A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
84137001N
ActiveCrouzet
SSR RELAY SPST-NO 10A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 84137001N |
|---|---|
| Approval Agency | CE, cURus, VDE |
| Load Current | 10 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 20 VAC/DC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.30 | |
Description
General part information
8413700 Series
Solid State SPST-NO (1 Form A) Hockey Puck
