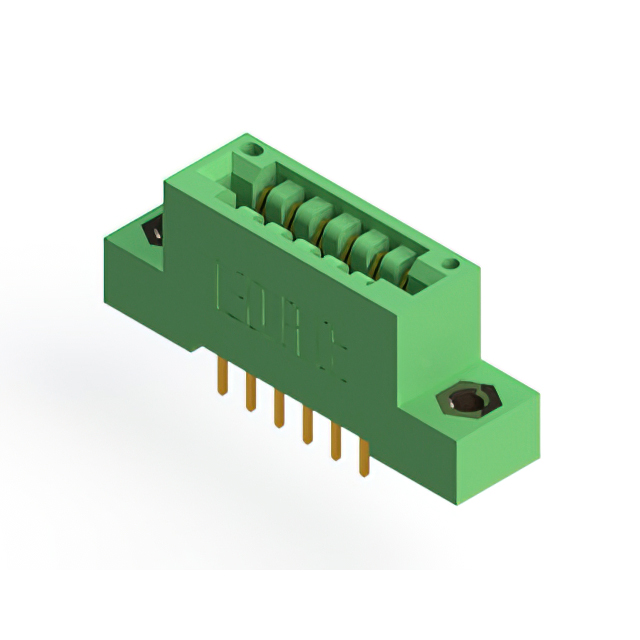

846-012-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-012-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-012-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-012 Series
...
| Part | Contact Type | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Material - Insulation | Contact Material | Mounting Type | Gender | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Termination | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Pitch [x] | Pitch [x] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole Right Angle | Female | Single | 1 | 10 Áin | 0.25 Ám | Green | Solder | 12 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||
EDAC Inc. | Cantilever | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Single | 1 | 10 Áin | 0.25 Ám | Green | Solder | 12 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||
EDAC Inc. | Cantilever | 2 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||
EDAC Inc. | Cantilever | 2 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Board Edge Straddle Mount | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | Card Extender | ||
EDAC Inc. | Cantilever | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||
EDAC Inc. | Cantilever | 2 | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole Right Angle | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | Cantilever | 2 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||||
EDAC Inc. | Cantilever | 2 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Wire Wrap | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||
EDAC Inc. | Cantilever | 1 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | Female | Single | 1 | 10 Áin | 0.25 Ám | Green | Solder Eyelet(s) | 12 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | |||||
EDAC Inc. | Cantilever | 2 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Board Edge Straddle Mount | Female | Dual | 2 | 10 Áin | 0.25 Ám | Green | Solder Eyelet(s) | 6 | 125 °C | -40 °C | 12 | 0.125 in | 3.18 mm | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
