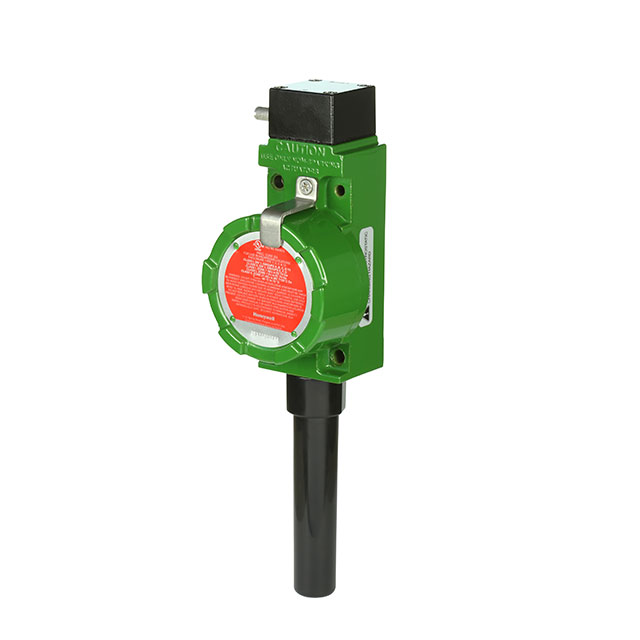

WBX1A00ABA4

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Pretravel	Mounting Type	Switch Function	Ingress Protection	Differential Travel	Actuator Type	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Termination Style	Features	Operating Position	Operating Position	Differential Travel	Pretravel	Overtravel
Honeywell Sensing and Productivity Solutions WBX1A00ABA	SPDT	17.5 °	Chassis Mount	On-Mom	IP67 - Dust Tight Waterproof	7 °	Side Rotary - No Lever	46 gfm	-40 °C	70 °C	60 °	Connector
Honeywell Sensing and Productivity Solutions WBX1A00ABA4	SPDT	17.5 °	Chassis Mount	On-Mom	IP67 - Dust Tight Waterproof	7 °	Side Rotary - No Lever	46 gfm	-40 °C	70 °C	60 °	Connector	Actuator Mounted Left Side
Honeywell Sensing and Productivity Solutions WBX1A12ABC	SPDT	0.07 "	Chassis Mount	On-Mom	IP67 - Dust Tight Waterproof	0.02 in	Round (Pin Plunger)	2041 gf	-40 °C	70 °C	0.19 in	Wireless		57.94 mm	2.281 in	0.5 mm	1.78 mm	4.8 mm
Honeywell Sensing and Productivity Solutions WBX1A14ABC	SPDT	0.07 "	Chassis Mount	On-Mom	IP67 - Dust Tight Waterproof	0.02 in	Round (Pin Plunger)	2041 gf	-40 °C	70 °C	0.19 in	Wireless		57.94 mm	2.281 in	0.5 mm	1.78 mm	4.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 689.15

General part information

Switch SPDT Chassis Mount

Technical documentation and resources

No documents available
