Technical Specifications
Parameters and characteristics for this part
| Specification | Q2-F3X-1/4-01-SS250FT |
|---|---|
| Color | Black |
| Features | Corrosion Resistant, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 2.03 mm |
| Inner Diameter - Recovered [diameter] | 0.08 in |
| Inner Diameter - Supplied [diameter] | 0.25 in |
| Inner Diameter - Supplied [diameter] | 6.35 mm |
| Length | 3 ", 2 ", 6 " |
| Length | 76.2 mm, 50.8 mm, 76.2 m, 152.4 mm |
| Length | 0.25 ft, 0.167 ', 3000 " |
| Length | Enter Number of Feet in Order Quantity |
| Length | 0.5 ' |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.66 mm |
| Recovered Wall Thickness | 0.026 " |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Spool Size | 76.2 m |
| Spool Size | 250 ft |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.09 | |
| 50 | $ 0.04 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.04 | |||
| 100 | $ 0.05 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.05 | |||
| 250 | $ 0.07 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 500 | $ 0.07 | |||
| 500 | $ 0.04 | |||
| 1250 | $ 0.07 | |||
| 1250 | $ 0.04 | |||
| 1250 | $ 0.03 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 0.83 | ||
| 5 | $ 0.76 | |||
| 10 | $ 0.58 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.49 | |||
| Spool | 1 | $ 50.43 | ||
| 2 | $ 46.38 | |||
| 3 | $ 44.16 | |||
| 5 | $ 41.52 | |||
| 7 | $ 39.87 | |||
| 10 | $ 38.19 | |||
| 25 | $ 34.19 | |||
| 50 | $ 32.15 | |||
Description
General part information

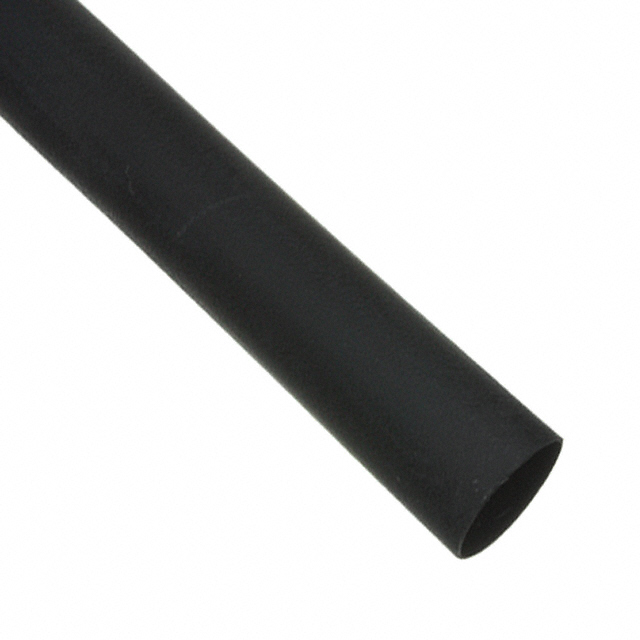

Q2-F3X-1/4 Series
Heat Shrink Tubing, Flexible 0.250" (6.35mm) 3 to 1 Black Enter Number of Feet in Order Quantity
