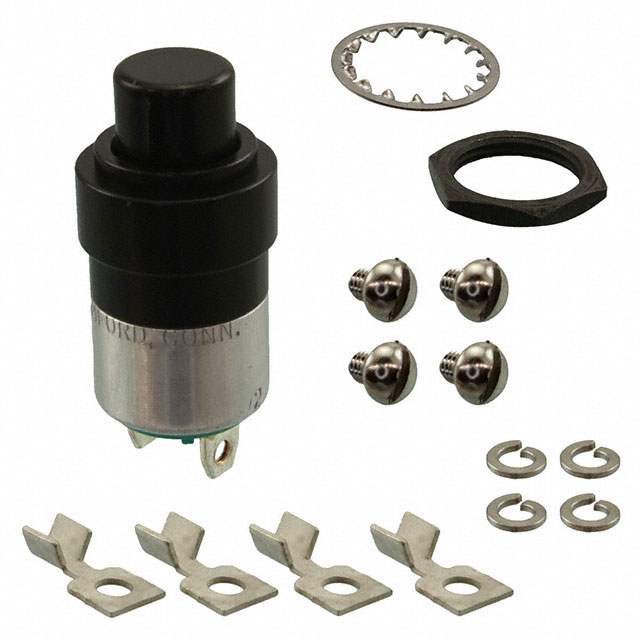

NX303AB1B-02
ActiveAmphenol NEXUS Technologies
TACTICAL PUSHBUTTON SC 3 CONTACT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NX303AB1B-02 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Ingress Protection | Dust Proof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.97 | |
| 10 | $ 46.38 | |||
| 25 | $ 44.23 | |||
| 50 | $ 41.26 | |||
| 100 | $ 39.64 | |||
| 250 | $ 36.94 | |||
Description
General part information
NX303AB Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
