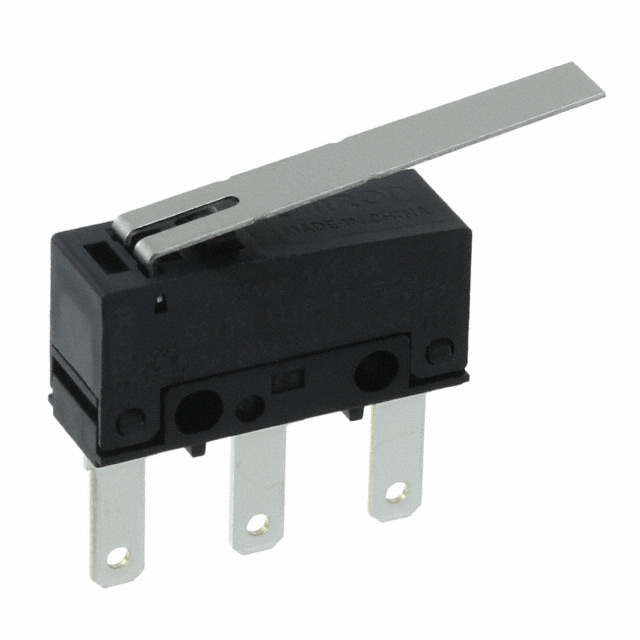

SS-3FL111P-3T
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SS-3FL111P-3T
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-3FL111P-3T |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NO |
| Current Rating (Amps) | 3 A |
| Differential Travel | 3 mm |
| Differential Travel | 0.118 " |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 56 gf |
| Operating Position | 8.8 mm |
| Operating Position | 0.345 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.04 in |
| Overtravel | 1 mm |
| Release Force | 1.02 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.98 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.65 | |||
Description
General part information
SS-3FL Series
Switch SPST-NO Chassis Mount
