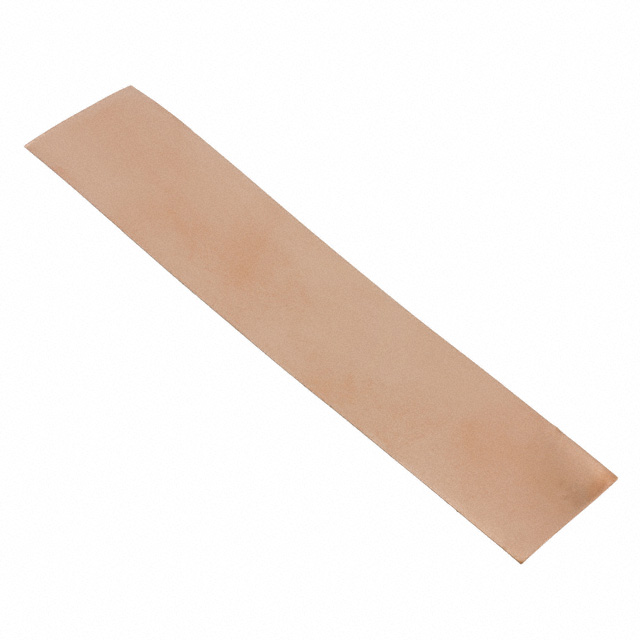

3M 1125 1" X 4"-100

Active

3M (TC)

RF EMI SHLDING SHEET 4"X1" 100PK

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHLDING SHEET 4"X1" 100PK

Technical Specifications

Parameters and characteristics for this part

Specification	3M 1125 1" X 4"-100

Adhesive	Acrylic, Non-Conductive, Single Sided
Length	4 in
Length	101.6 mm
Material	Copper Foil
Shape	Rectangular
Thickness - Overall	0.09 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet
Width	25.4 mm
Width [x]	1 in

Part	Shape	Width [x]	Width [x]	Thickness - Overall	Thickness - Overall	Material	Type	Adhesive	Shelf Life	Length	Length	Width	Width [y]	Width [y]	Usage	Width	Width	Thickness	Thickness	Thickness	Length	Backing, Carrier	Color
3M (TC) 3M 1125 CIRCLE-2"-100	Circular	2 in	50.8 mm	0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided
3M (TC) 1125 X 1"		1 in		0.09 mm	0.004 in	Copper Foil	Shielding Tape	Acrylic Non-Conductive Single Sided	60 Months	108.005 ft	32.92 m	25.4 mm
3M (TC) 1125SQ-0.5(250)	Square			0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided		0.5 in	12.7 mm
3M (TC) 3M 1125 CIRCLE-0.75"-250	Circular			0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided					0.75 in	19.05 mm
3M (TC) 1125-BY								Rubber		22.86 m	22.9 m	47.63 mm			Marking	1 7/8"	1.88 in	0.0065 in	6.5 mils	0.165 mm	22860 mm	Polyethylene
3M (TC) 3M 1125 1" X 4"-100	Rectangular	1 in		0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided		4 in	101.6 mm	25.4 mm
3M (TC) 3M 1125 1/2" X 4"-100	Rectangular			0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided		4 in	101.6 mm
3M (TC) 1125-RW								Rubber		22.86 m	22.9 m	47.63 mm			Marking	1 7/8"	1.88 in	0.0065 in	6.5 mils	0.165 mm	22860 mm	Polyethylene	Red White
3M (TC) 1125-0.75-2(100)	Rectangular			0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided	60 Months	2 in	50.8 mm		0.75 in	19.05 mm
3M (TC) 3M 1125 1/2" X 3"-100	Rectangular			0.09 mm	0.004 in	Copper Foil	Shielding Sheet	Acrylic Non-Conductive Single Sided		3 in	76.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1125 Copper Foil Acrylic, Non-Conductive, Single Sided 1.000" (25.40mm) X 4.000" (101.60mm) X 0.004" (0.09mm)
