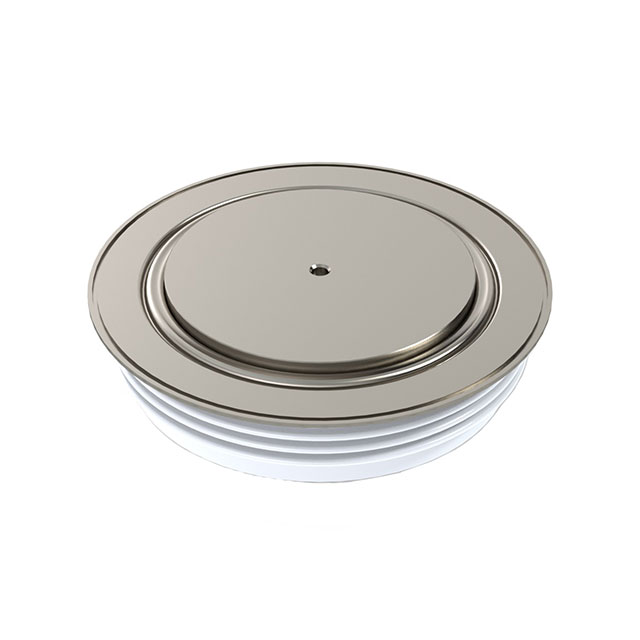

W2865HA720

Active

IXYS

DIODE GEN PURP 7200V 4825A W121

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 7200V 4825A W121

Technical Specifications

Parameters and characteristics for this part

Specification	W2865HA720

Current - Average Rectified (Io)	4825 A
Current - Reverse Leakage @ Vr	100 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	DO-200AD
Reverse Recovery Time (trr)	53 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	W121
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	7200 V
Voltage - Forward (Vf) (Max) @ If [Max]	4.04 V

Part	Supplier Device Package	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Speed	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]
IXYS W2865HA720	W121	Standard	Chassis Mount	100 mA	150 °C	-40 °C	DO-200AD	7200 V	53 µs	Standard Recovery >500ns	200 mA	4825 A	4.04 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 725.93

General part information

Diode 7200 V 4825A Chassis Mount W121
