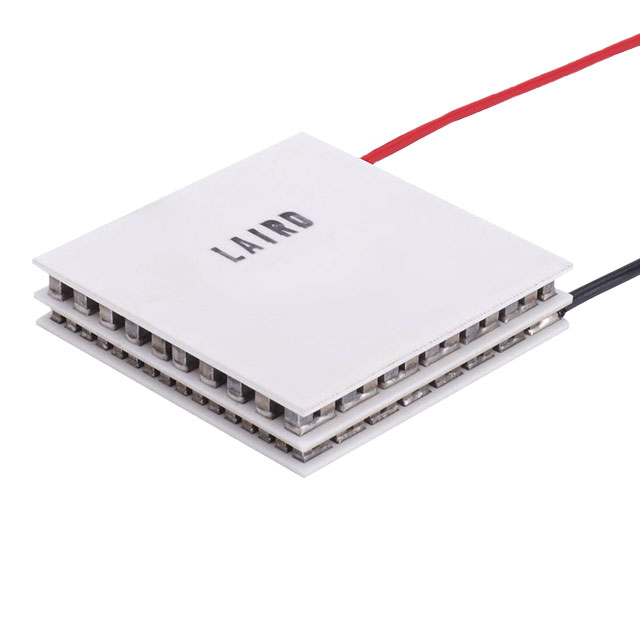

9350006-319

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,11,18,21,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,11,18,21,W8

Technical Specifications

Parameters and characteristics for this part

Part	Qmax @ Th	Number of Stages	Operating Temperature	Height [z]	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Features	Delta Tmax @ Th	Current - Max [Max]
Laird Thermal Systems, Inc. 9350006-302	39.9 W	2	80 °C	8.1 mm	15.8 V	40 mm	40 mm	Lead Wires Sealed - Silicone RTV	87 °C	6.8 A
Laird Thermal Systems, Inc. 9350006-319	39.9 W	2	80 °C	8.1 mm	15.8 V	40 mm	40 mm	Lead Wires Non-Sealed	87 °C	6.8 A
Laird Thermal Systems, Inc. 9350006-307	39.9 W	2	80 °C	8.28 mm	15.8 V	40 mm	40 mm	Lead Wires Non-Sealed	87 °C	6.8 A
Laird Thermal Systems, Inc. 9350006-301	39.9 W	2	80 °C	8.1 mm	15.8 V	40 mm	40 mm	Lead Wires Non-Sealed	87 °C	6.8 A
Laird Thermal Systems, Inc. 9350006-304	39.9 W	2	80 °C	8.28 mm	15.8 V	40 mm	40 mm	Lead Wires Non-Sealed	87 °C	6.8 A
