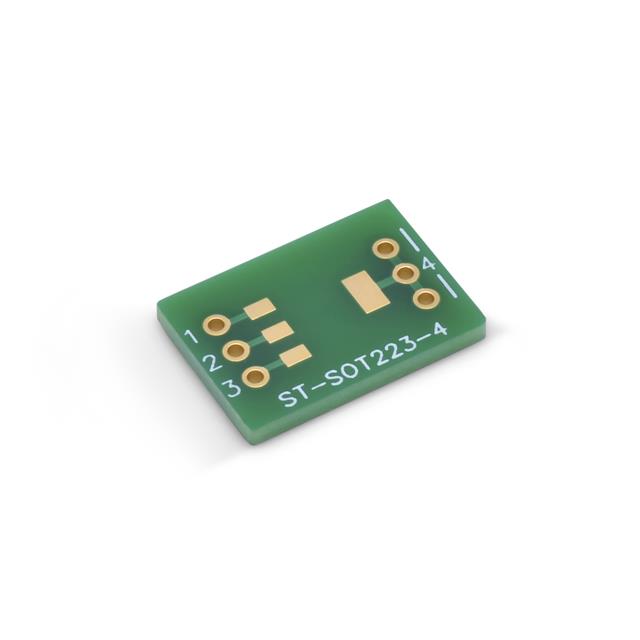

ST-SOT223-4
ActiveSchmalzTech, LLC
SOT223-4 SMD TO DIP ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST-SOT223-4
ActiveSchmalzTech, LLC
SOT223-4 SMD TO DIP ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-SOT223-4 |
|---|---|
| Material | FR4 Epoxy Glass |
| Number of Positions | 6 |
| Package Accepted | SOT-223-4 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | SMD to DIP |
| Size / Dimension [x] | 0.7 in |
| Size / Dimension [x] | 17.78 mm |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [y] | 0.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 1.99 | |
| 30 | $ 1.89 | |||
| 80 | $ 1.79 | |||
Description
General part information
ST-SOT223 Series
SOT223-4 SMD TO DIP ADAPTER
Documents
Technical documentation and resources
