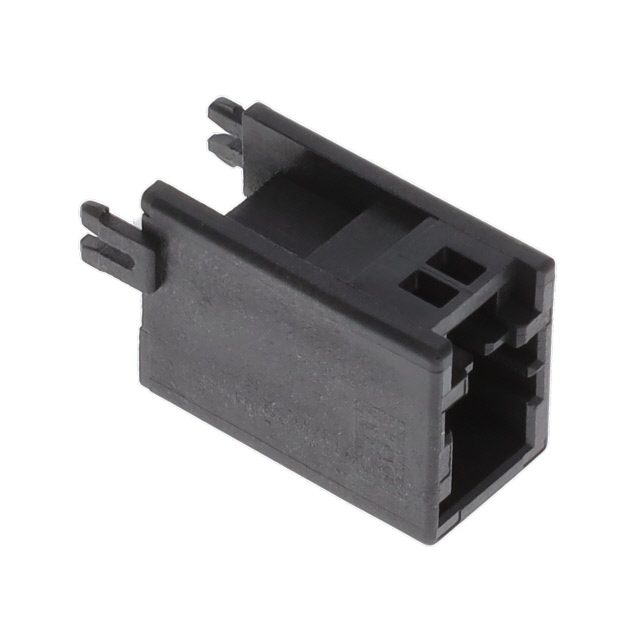

DF22R-1P-7.92DSA(57)

Active

Hirose Electric USA, Inc.

CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF22R-1P-7.92DSA(57)

Active

Hirose Electric USA, Inc.

CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF22R-1P-7.92DSA(57)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Mating	0.354 in
Contact Length - Mating	9 mm
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	0.713 "
Insulation Height	18.1 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	1000 VAC

DF22R Series

Part	Contact Type	Shrouding	Number of Positions Loaded	Features	Mated Stacking Heights	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Style	Fastening Type	Connector Type	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Contact Termination	Pitch [x]	Pitch [x]	Note	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF22R-4P-7.92DSA	Male Pin	Shrouded - 4 Wall	All	Board Guide	25.7 mm 28.7 mm	Copper Alloy	-35 °C	85 °C	Square	1	Board to Cable/Wire	Latch Holder	Header	Through Hole	Solder	0.312 in	7.92 mm	Glass Filled Nylon Polyamide (PA)	0.713 "	18.1 mm	Black	22 A	UL94 V-0	4	0.146 in	3.7 mm	0.354 in	9 mm	1000 VDC
Hirose Electric USA, Inc. DF22R-1P-7.92DSA(06)
Hirose Electric USA, Inc. DF22R-5P-7.92DS(06)
Hirose Electric USA, Inc. DF22R-2S-7.92C	Female Socket			Polarizing Key						1		Latch Lock	Receptacle	Free Hanging (In-Line)										2						Crimp	7.92 mm	0.312 in	Contacts Not Included	Black
Hirose Electric USA, Inc. DF22R-2S-7.92C(28)	Female Socket			Polarizing Key			-55 °C	85 °C		1		Latch Lock	Receptacle	Free Hanging (In-Line)				Nylon Polyamide (PA)						2						Crimp	7.92 mm	0.312 in	Contacts Not Included	Black
Hirose Electric USA, Inc. DF22R-2P-7.92DSA(06)
Hirose Electric USA, Inc. DF22R-1P-7.92DSA(57)	Male Pin	Shrouded - 4 Wall	All	Board Guide Board Lock		Copper Alloy	-55 °C	85 °C	Square	1	Board to Cable/Wire	Latch Holder	Header	Through Hole	Solder			Nylon Polyamide (PA)	0.713 "	18.1 mm	Black		UL94 V-0	1	0.146 in	3.7 mm	0.354 in	9 mm	1000 VAC						0.203 Ám	8 Áin	Gold	Gold	Varies by Wire Gauge	8 µin	0.203 µm
Hirose Electric USA, Inc. DF22R-2P-7.92DS(53)	Male Pin	Shrouded - 4 Wall	All	Board Guide		Copper Alloy	-55 °C	85 °C	Square	1	Board to Cable/Wire	Latch Holder	Header	Through Hole Right Angle	Solder	0.312 in	7.92 mm	Nylon Polyamide (PA)	0.48 in	12.2 mm	Black		UL94 V-0	2	0.146 in	3.7 mm	0.354 in	9 mm	1000 VAC						0.203 Ám	8 Áin	Gold	Gold	Varies by Wire Gauge	8 µin	0.203 µm
Hirose Electric USA, Inc. DF22R-2P-7.92DSA	Male Pin	Shrouded - 4 Wall	All	Board Guide	25.7 mm 28.7 mm	Copper Alloy	-35 °C	85 °C	Square	1	Board to Cable/Wire	Latch Holder	Header	Through Hole	Solder	0.312 in	7.92 mm	Glass Filled Nylon Polyamide (PA)	0.713 "	18.1 mm	Black	25 A	UL94 V-0	2	0.146 in	3.7 mm	0.354 in	9 mm	1000 VDC
Hirose Electric USA, Inc. DF22R-3S-7.92C(28)	Female Socket			Polarizing Key			-55 °C	85 °C		1		Latch Lock	Receptacle	Free Hanging (In-Line)				Nylon Polyamide (PA)												Crimp	7.92 mm	0.312 in	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.25
		10	$ 0.95
		80	$ 0.75
		440	$ 0.62
		945	$ 0.58
		4900	$ 0.49
		10000	$ 0.45

Description

General part information

DF22R Series

Connector Header Through Hole 1 position
