TLV49611MXTSA1

Active

Infineon Technologies

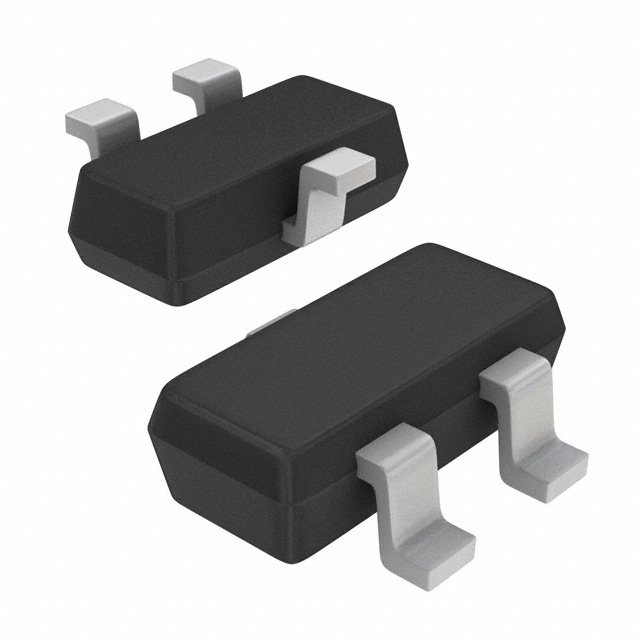

HALL EFFECT SWITCH, 0.002 T, -0.002 T, 3 V, 32 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

TLV49611MXTSA1

Active

Infineon Technologies

HALL EFFECT SWITCH, 0.002 T, -0.002 T, 3 V, 32 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLV49611MXTSA1

Current - Output (Max) [Max]	25 mA
Current - Supply (Max) [Max]	2.5 mA
Features	Temperature Compensated
Function	Latch
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Drain
Package / Case	SOT-23-3, TO-236-3, SC-59
Polarization	South Pole
Qualification	AEC-Q100
Supplier Device Package	PG-SOT23-3-15
Technology	Hall Effect
Test Condition	25 °C
Voltage - Supply [Max]	26 V
Voltage - Supply [Min]	3 V

TLV49611 Series

Part	Current - Supply (Max) [Max]	Technology	Qualification	Supplier Device Package	Output Type	Polarization	Sensing Range [Max]	Sensing Range [Min]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output (Max) [Max]	Package / Case	Features	Grade	Test Condition	Mounting Type
Infineon Technologies TLV49611TAXBXA1	2.5 mA	Hall Effect	AEC-Q100	TO-92-3	Open Drain	South Pole	2 mT	-2 mT	Latch	-40 °C	125 °C	26 V	3 V	25 mA	TO-226-3 TO-92-3	Temperature Compensated	Automotive	25 °C	Through Hole
Infineon Technologies TLV49611MXTSA1	2.5 mA	Hall Effect	AEC-Q100	PG-SOT23-3-15	Open Drain	South Pole			Latch	-40 °C	125 °C	26 V	3 V	25 mA	SC-59 SOT-23-3 TO-236-3	Temperature Compensated	Automotive	25 °C	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.23
Newark	Each	1	$ 0.33

Description

General part information

TLV49611 Series

TLV49611MXTSA1 is a high-precision automotive unipolar hall effect switch. Target applications for the TLE496x hall switch family are all applications that require a high precision hall switch with an operating temperature range from -40°C to 85°C. Its superior supply voltage range from 3.0V to 32V with overvoltage capability (e.g. load-dump) up to 42V without an external resistor makes it ideally suited for automotive and industrial applications. The magnetic behavior as a latch and switching thresholds of typical ±2mT make the device especially suited for the use of a pole wheel for index counting applications e.g. power closing and window lifter.
