ED028PLCZ-SM-N

Active

On Shore Technology Inc.

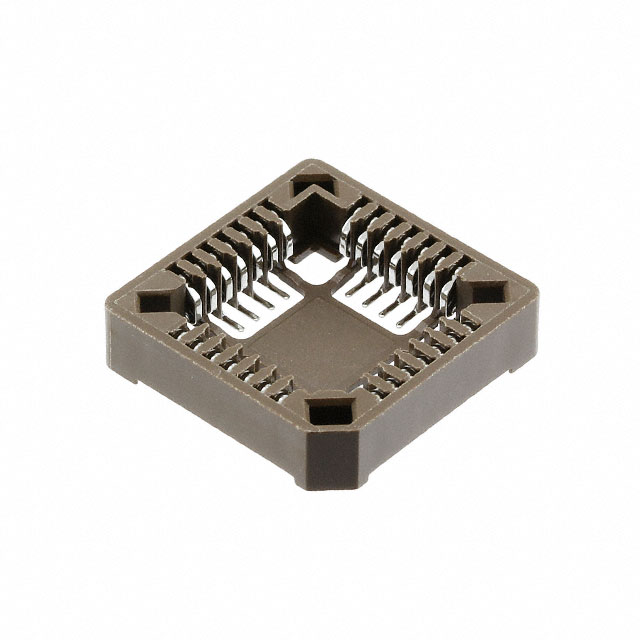

CONN SOCKET PLCC 28POS

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN SOCKET PLCC 28POS

Technical Specifications

Parameters and characteristics for this part

Specification	ED028PLCZ-SM-N

Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Type	PLCC

Part	Contact Resistance	Pitch - Mating	Pitch - Mating	Contact Material - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Type	Pitch - Post	Pitch - Post	Material Flammability Rating	Contact Material - Mating	Features	Current Rating (Amps)	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Pitch - Mating	Housing Material	Contact Finish - Post
On Shore Technology Inc. ED028PLCZ-SM-N	30 mOhm	0.05 in	1.27 mm	Phosphor Bronze	105 ░C	-55 °C	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	UL94 V-0	Phosphor Bronze	Closed Frame	1 A	28
On Shore Technology Inc. ED028PLCZ	30 mOhm	2.54 mm		Phosphor Bronze	105 ░C	-55 °C	Solder	Through Hole	PLCC	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Closed Frame	1 A	28	0.118 in	3 mm	0.1 in	Polybutylene Terephthalate (PBT)	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1024	$ 0.64

General part information

28 (2 x 14) Pos PLCC Socket Surface Mount
