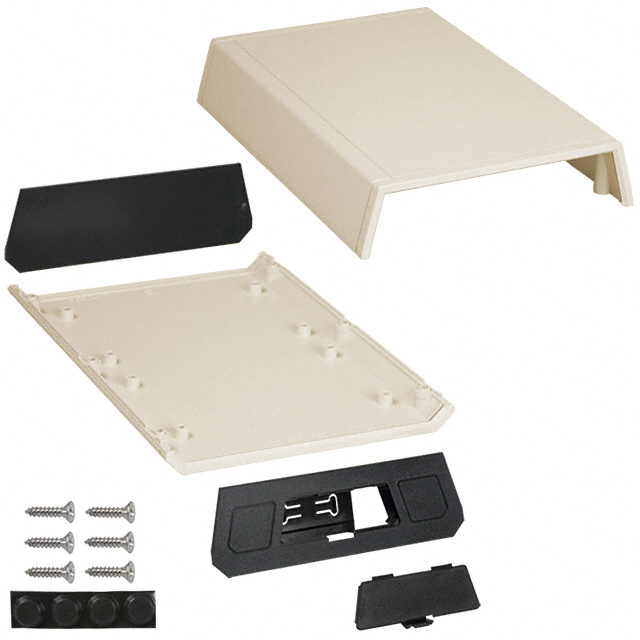

A429V,AL

Active

Serpac

BOX ABS ALMOND 7.12"L X 5"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 7.12"L X 5"W

Technical Specifications

Parameters and characteristics for this part

Specification	A429V,AL

Area (L x W) [custom]	230 cm²
Area (L x W) [custom]	35.6 in²
Color	Almond
Container Type	Box
Design	Split Sides and End Panel(s)
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	1.62 in
Height [z]	41.15 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.12 "
Size / Dimension [x]	180.85 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Thickness	0.12 in
Thickness	3.05 mm
Weight	219.99 g
Weight	0.485 lb

Part	Material	Ratings	Height [z]	Height [z]	Material Flammability Rating	Container Type	Features	Features	Color	Weight	Weight	Design	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Serpac A429V,BK	Plastic ABS	IP40	1.62 in	41.15 mm	UL94 HB	Box	Battery Compartment PCB Supports	9 V	Black	219.99 g	0.485 lb	Split Sides and End Panel(s)	230 cm²	35.6 in²	0.12 in	3.05 mm	7.12 "	5 "	127 mm	180.85 mm
Serpac A429V,AL	Plastic ABS	IP40	1.62 in	41.15 mm	UL94 HB	Box	Battery Compartment PCB Supports	9 V	Almond	219.99 g	0.485 lb	Split Sides and End Panel(s)	230 cm²	35.6 in²	0.12 in	3.05 mm	7.12 "	5 "	127 mm	180.85 mm
Serpac A429V,GY	Plastic ABS	IP40	1.62 in	41.15 mm	UL94 HB	Box	Battery Compartment PCB Supports	9 V	Gray	219.99 g	0.485 lb	Split Sides and End Panel(s)	230 cm²	35.6 in²	0.12 in	3.05 mm	7.12 "	5 "	127 mm	180.85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.83

General part information

Box Plastic, ABS Almond Split Sides and End Panel(s) 7.120" L x 5.000" W (180.85mm x 127.00mm) X 1.620" (41.15mm)

Technical documentation and resources

No documents available
