356-012-400-101

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-012-400-101

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-012-400-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

356-012 Series

Part	Termination	Material - Insulation	Contact Finish	Number of Positions	Gender	Card Type	Read Out	Pitch [x]	Pitch [x]	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 356-012-400-102	Solder Eyelet(s)	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 356-012-400-101	Solder Eyelet(s)	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in				Free Hanging (In-Line)
EDAC Inc. 356-012-421-112	Solder	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Panel Mount Through Hole
EDAC Inc. 356-012-420-158	Solder	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Card Guides
EDAC Inc. 356-012-420-168	Solder	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Card Guides
EDAC Inc. 356-012-521-107	Solder	Polyester Thermoplastic	Gold	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole		10 Áin	0.25 Ám
EDAC Inc. 356-012-420-103	Solder	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Panel Mount Through Hole
EDAC Inc. 356-012-521-158	Solder	Polyester Thermoplastic	Gold	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Card Guides	10 Áin	0.25 Ám
EDAC Inc. 356-012-520-103	Solder	Polyester Thermoplastic	Gold	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Panel Mount Through Hole		10 Áin	0.25 Ám
EDAC Inc. 356-012-421-102	Solder	Polyester Thermoplastic	Tin	24	Female	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	1	2	12	-40 °C	105 ░C	Black	Copper Alloy	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 9.51
Newark	Each	25	$ 15.57
		50	$ 15.06
		100	$ 14.06
		250	$ 13.56
		500	$ 12.81

Description

General part information

356-012 Series

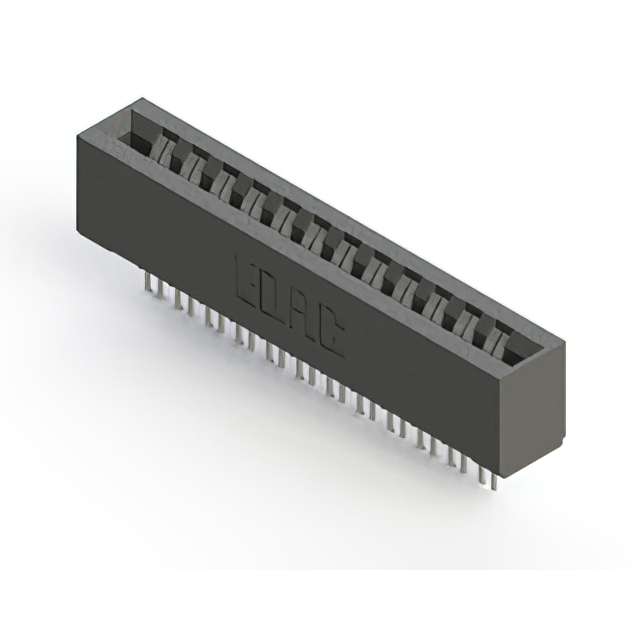

24 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
