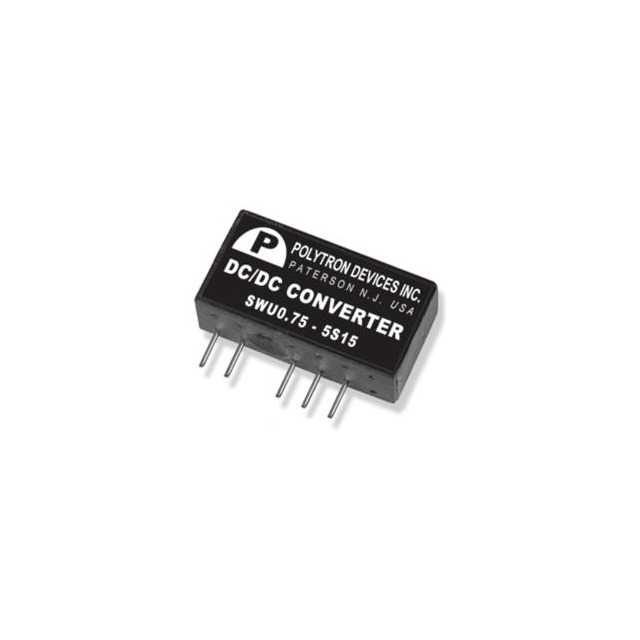

SWU0.75-15-15W
ActivePolytron
DC DC CONVERTER +/-15V 750MW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWU0.75-15-15W
ActivePolytron
DC DC CONVERTER +/-15V 750MW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWU0.75-15-15W |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 25 mA |
| Current - Output (Max) [Min] | 25 mA |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Power (Watts) | 0.75 W |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 6.1 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 750 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.75 | |
Description
General part information
SWU0.75 Series
Isolated Module DC DC Converter 2 Output 15V -15V 25mA, 25mA 13.5V - 16.5V Input
